Engine Compartment

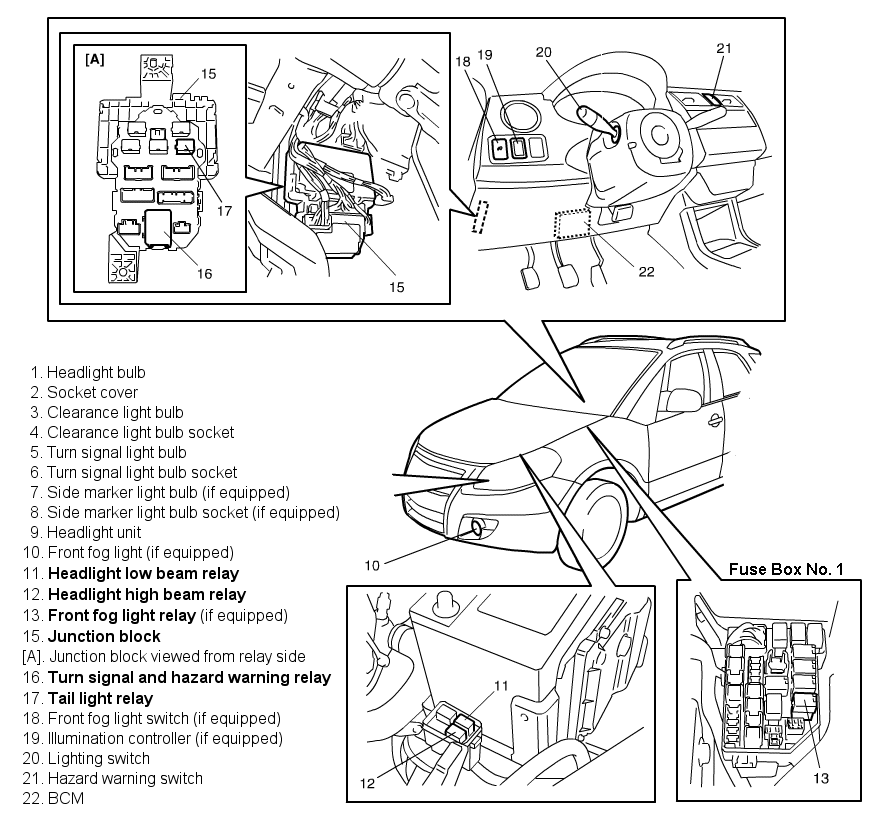

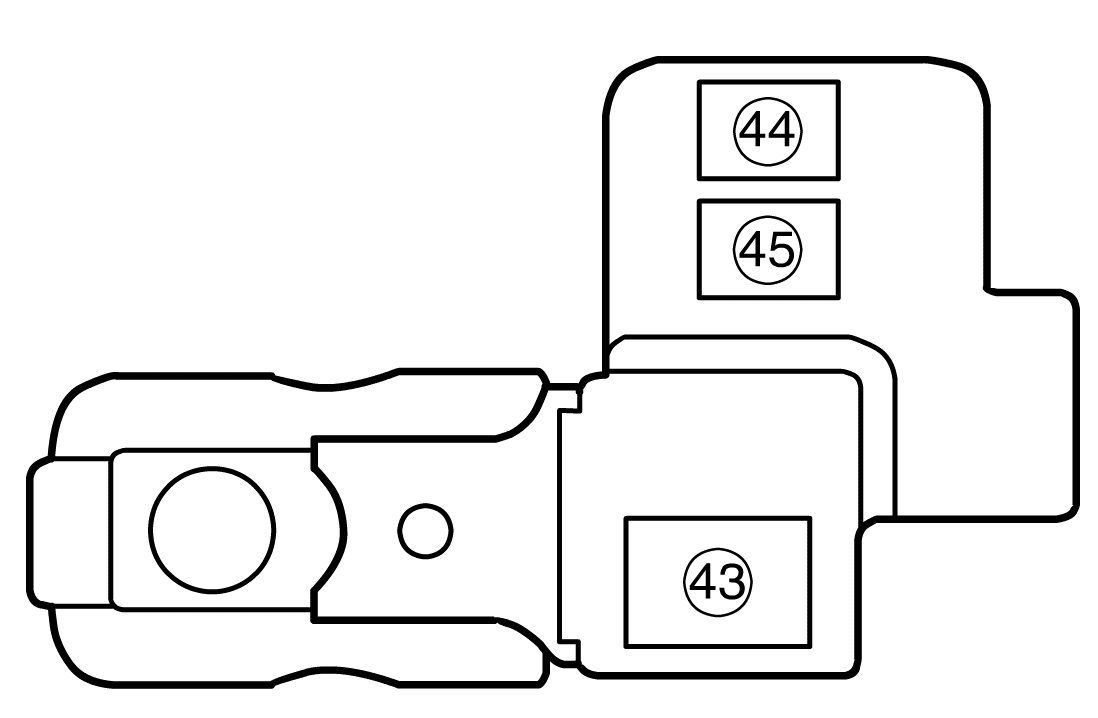

Main Fuse Box Assignments
| Fuse No. | Amps | Protected circuit |
|---|---|---|
| 43 | 80 A | All electric circuit |
| -- | -- | Battery |
| -- | -- | Generator |
| 44 | 50 A | J/B |
| 45 | 50 A | J/B |

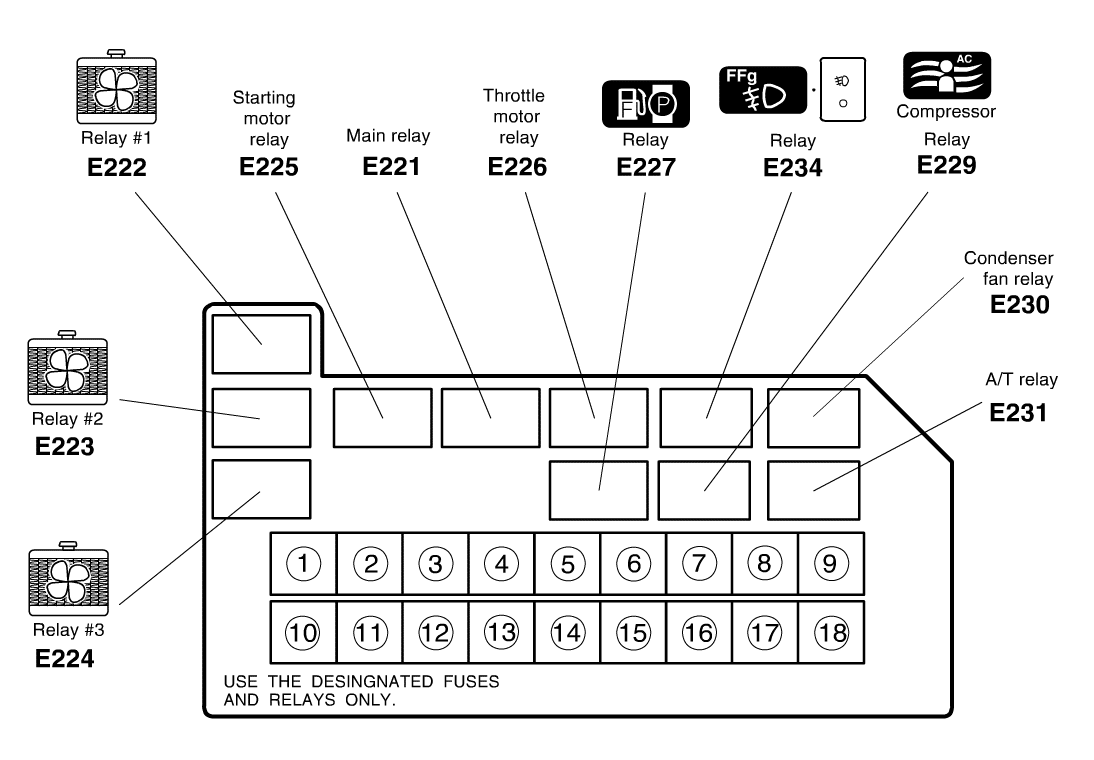

Fuse Box No. 1 Assignments
| Fuse No. | Amps | Description on Fuse Box Cover | Protected Circuit |
|---|---|---|---|
| 1 | 15 A | FI | Main relay |
| 2 | 15 A | AT | A/T relay |
| 3 | 15 A | THR MOT | Throttle motor relay |
| 4 | 20 A | A/C | A/C compressor relay |
| Condenser fan relay | |||
| 5 | BLANK | BLANK | BLANK |
| 6 | 30 A | BLW | J/B |
| 7 | 50 A | IGN | IG switch |
| 8 | 30 A | ST | Starting motor relay |
| 9 | 30 A | ABS SOL | ABS control module |
| ESPR control module | |||
| 10 | 30 A | RDTR | Radiator fan relay #1 |
| Radiator fan relay #2 | |||
| Radiator fan relay #3 | |||
| 11 | 40 A | ABS MOT | ABS control module |
| ESPR control module | |||
| 12 | 60 A | P/S | Power steering control module |
| 13 | BLANK | BLANK | BLANK |
| 14 | 20 A | FR FOG | Front fog light relay |
| 15 | 15 A | H/L L | Headlight (L) |
| Head light relay (L) | |||
| 16 | 15 A | H/L R | Headlight (R) |
| Head light relay (R) | |||
| 17 | BLANK | BLANK | BLANK |
| 18 | BLANK | BLANK | BLANK |
