Junction Block Inner Circuit (Detail)

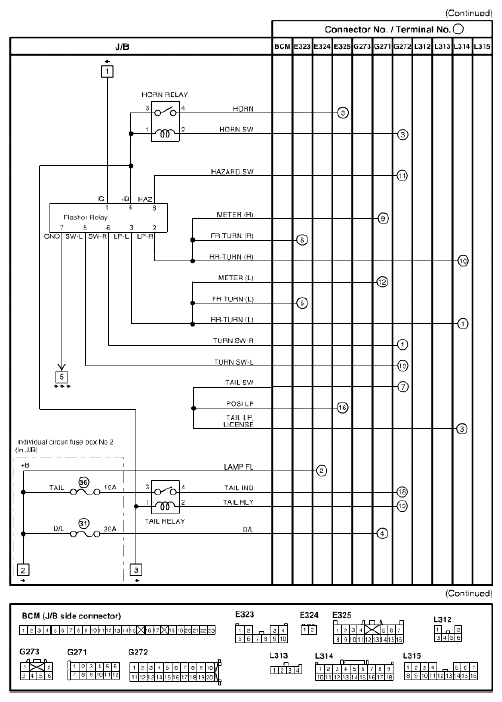

Fig 1: Junction Block Inner Circuit Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

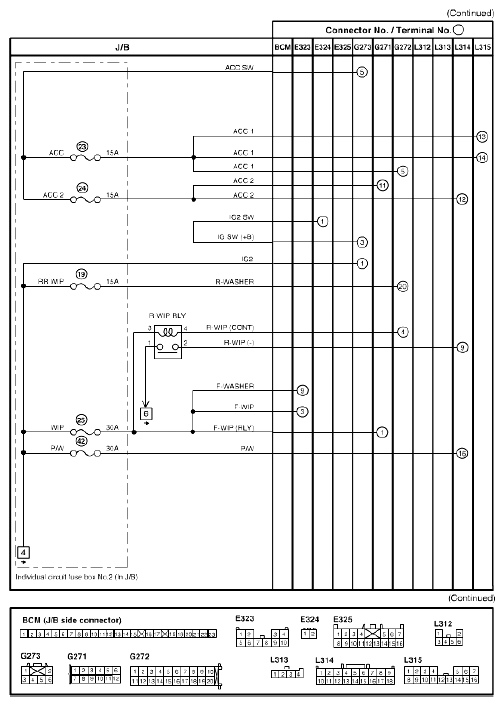

Fig 2: Junction Block Inner Circuit Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

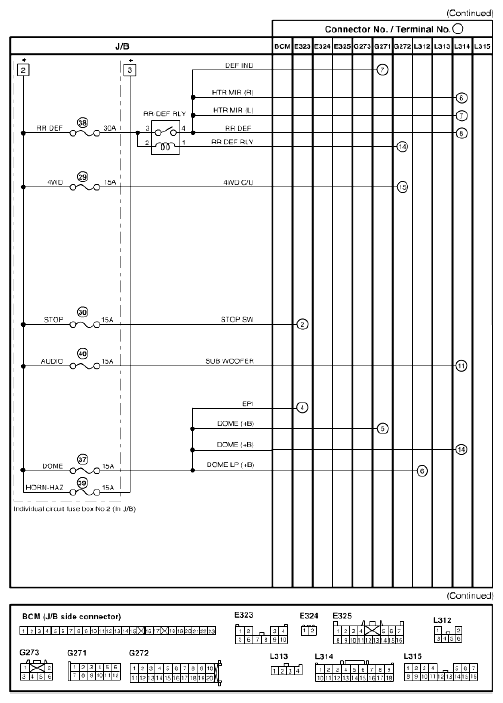

Fig 3: Junction Block Inner Circuit Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

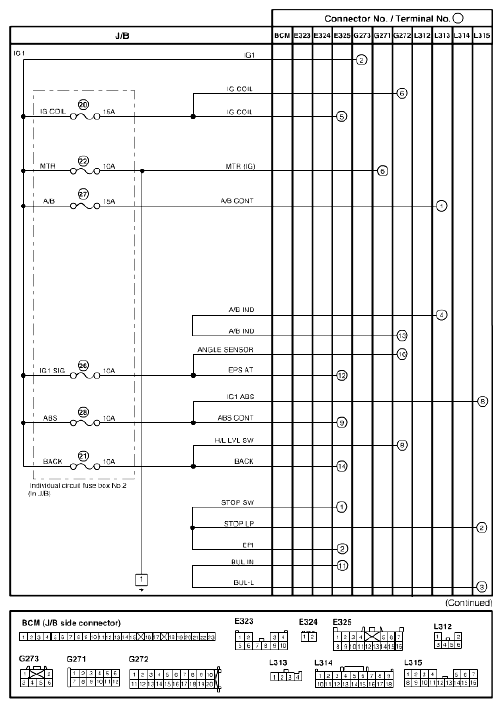

Fig 4: Junction Block Inner Circuit Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

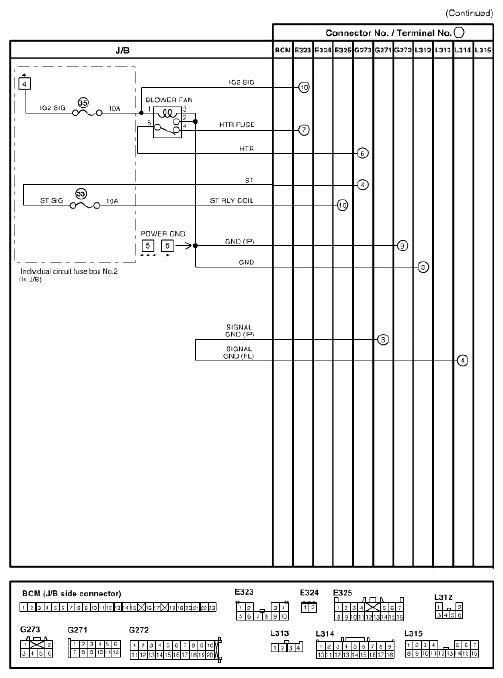

Fig 5: Junction Block Inner Circuit Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
