Power Supply Diagram
>>
Junction Block (J/B) Connector / Fuse Layout
>>
Relay side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Relay side

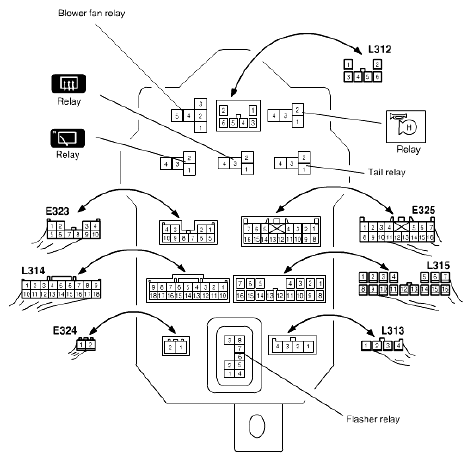

Fig 1: Junction Block Connector / Fuse Layout - Relay Side
Courtesy of SUZUKI OF AMERICA CORP.
