Individual Circuit Fuse Box No. 1

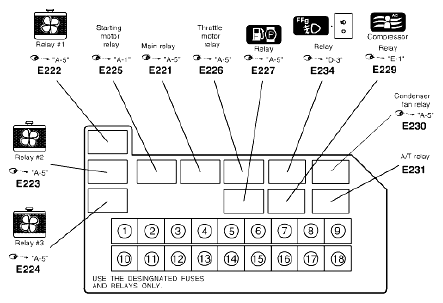

Fig 1: Identifying Individual Circuit Fuse Box No. 1

Courtesy of SUZUKI OF AMERICA CORP.

FUSE BOX NO. 1 DESCRIPTION

No.	Fuse	Description on the cover	Protected circuit
(1)	15 A	FI	Main relay
(2)	15 A	AT	A/T relay
(3)	15 A	THR MOT	Throttle motor relay
(4)	20 A	A/C	A/C compressor relay
(4)	20 A	A/C	Condenser fan relay
(5)	BLANK	BLANK	BLANK
(6)	30 A	BLW	J/B
(7)	50 A	IGN	IG switch
(8)	30 A	ST	Starting motor relay
(9)	30 A	ABS SOL	ABS control module
(9)	30 A	ABS SOL	ESP^R control module
(10)	30 A	RDTR	Radiator fan relay #1
			Radiator fan relay #2
			Radiator fan relay #3
(11)	40 A	ABS MOT	ABS control module
(11)	40 A	ABS MOT	ESP^R control module
(12)	60 A	P/S	Power steering control module
(13)	BLANK	BLANK	BLANK
(14)	20 A	FR FOG	Front fog light relay
(15)	15 A	H/L L	Headlight (L)
(15)	15 A	H/L L	Head light relay (L)
(16)	15 A	H/L R	Headlight (R)
(16)	15 A	H/L R	Head light relay (R)
(17)	BLANK	BLANK	BLANK
(18)	BLANK	BLANK	BLANK
