L Connector

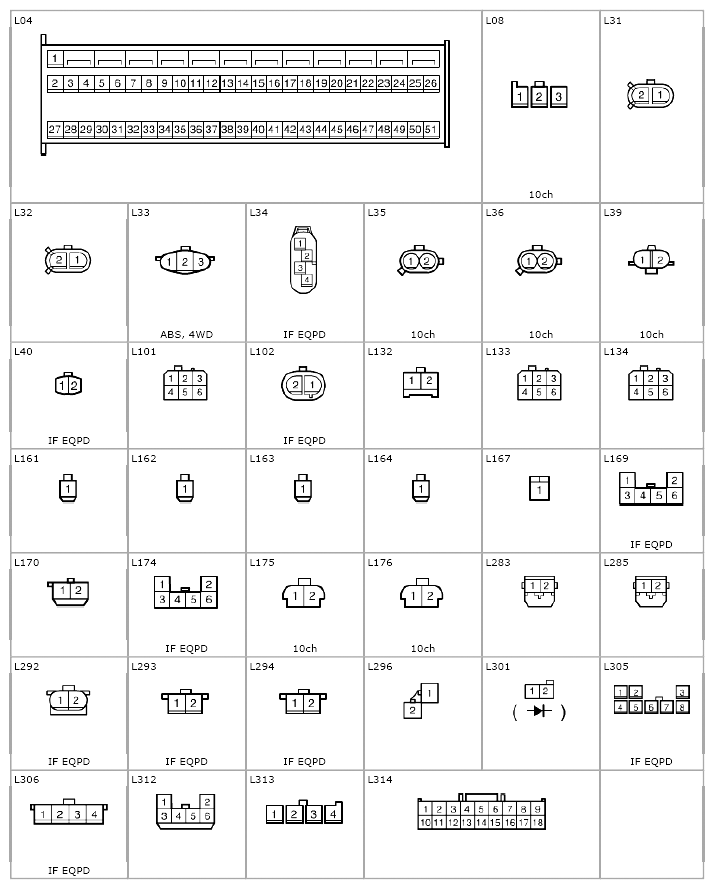

Fig 1: L - Connector Identification Chart (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

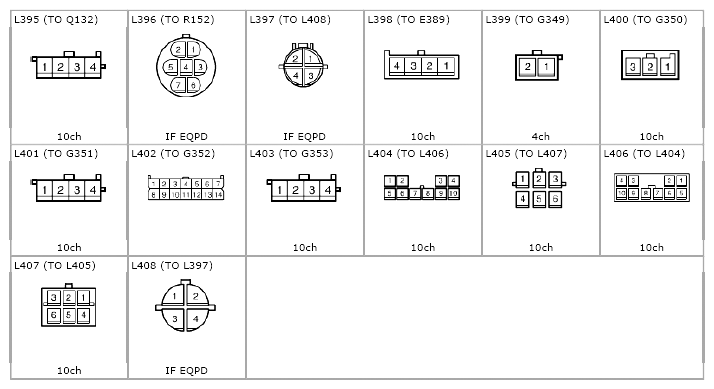

Fig 2: L - Connector Identification Chart (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

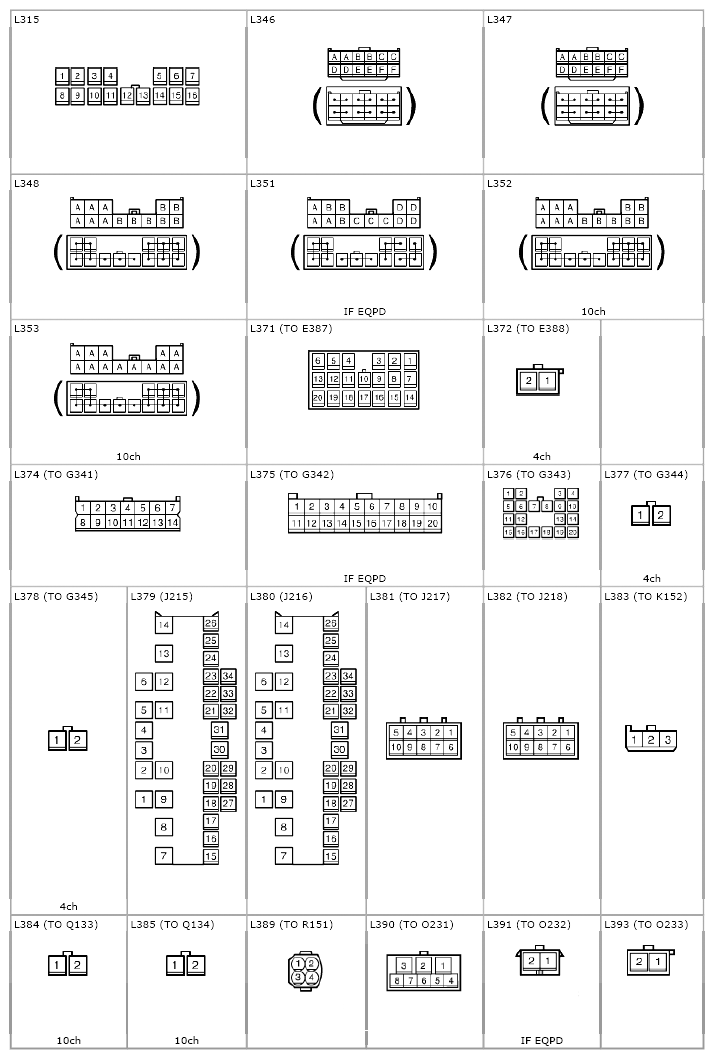

Fig 3: L - Connector Identification Chart (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
