G Connector

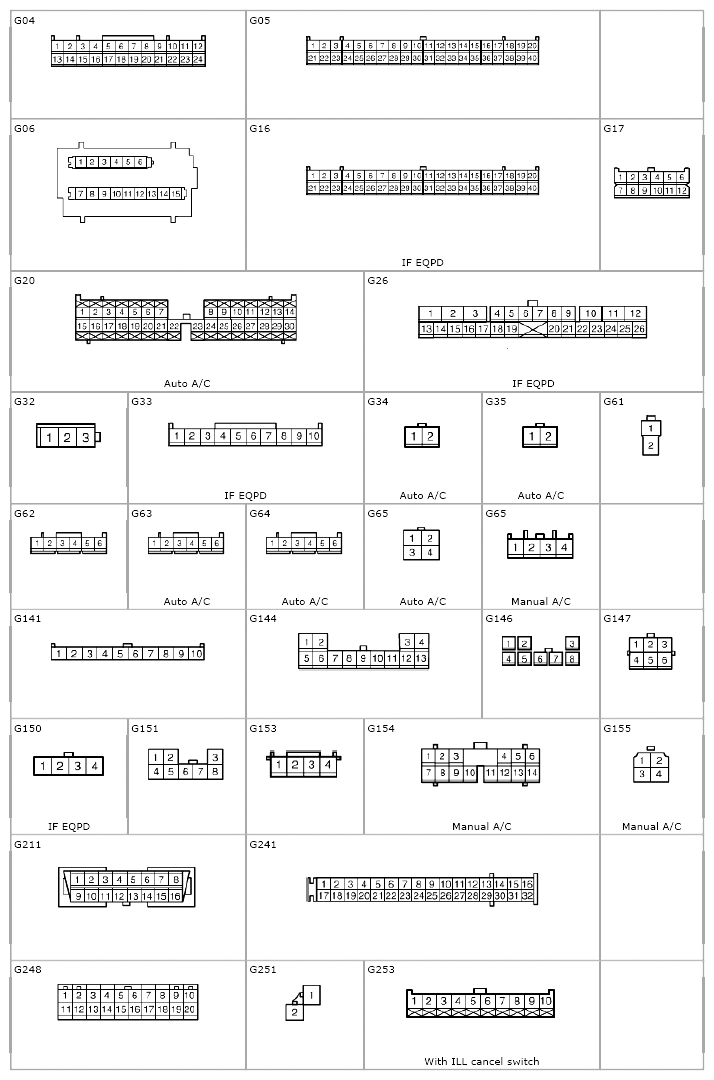

Fig 1: G - Connector Identification Chart (1 Of 3)
G04848873Courtesy of SUZUKI OF AMERICA CORP.

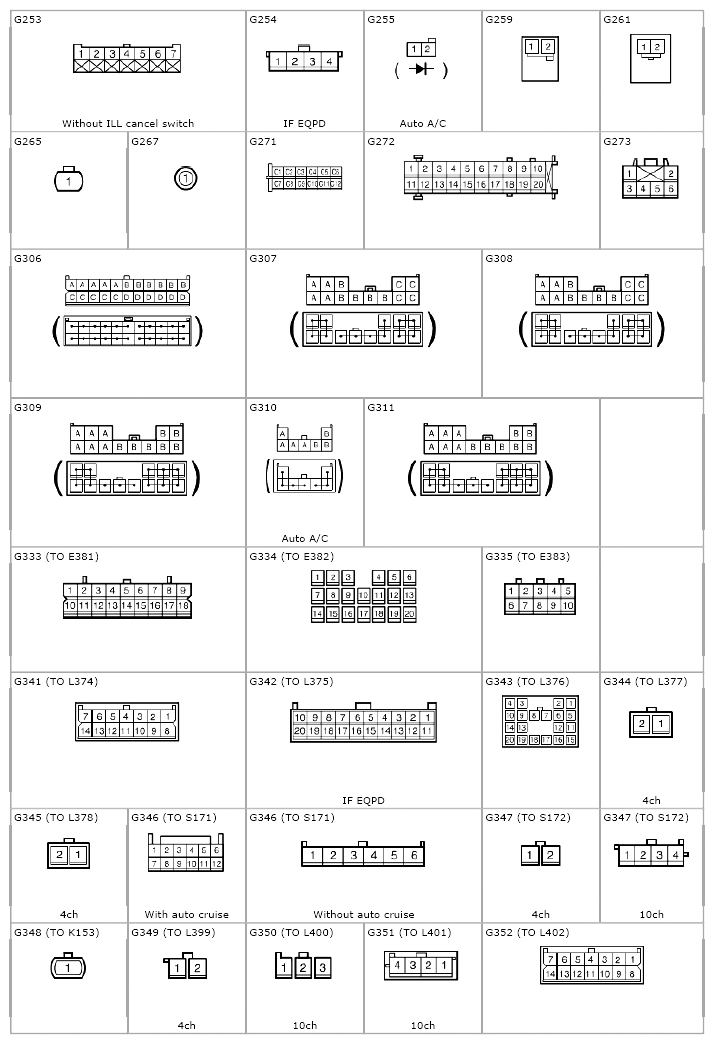

Fig 2: G - Connector Identification Chart (2 Of 3)
G04848874Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: G - Connector Identification Chart (3 Of 3)
G04848875Courtesy of SUZUKI OF AMERICA CORP.
