E Connector

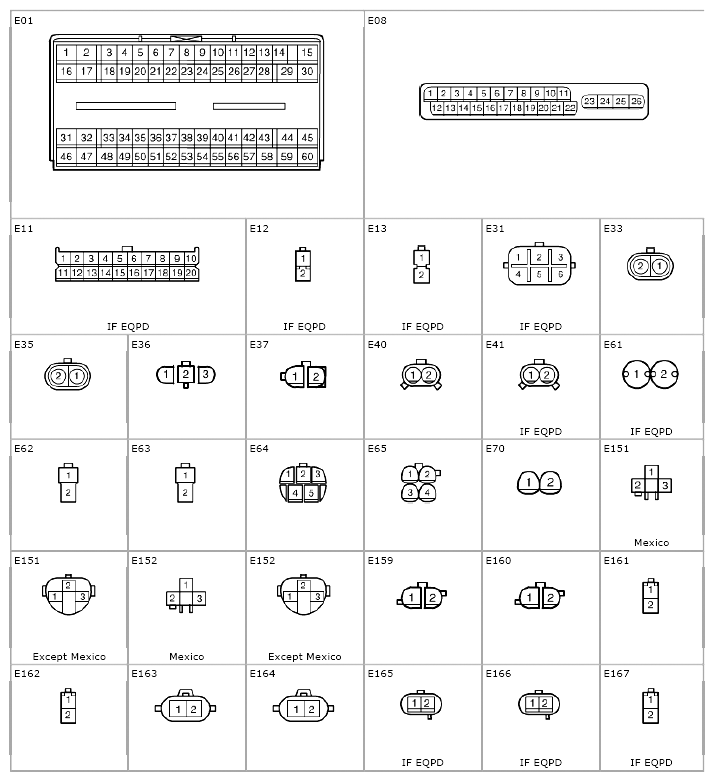

Fig 1: E - Connector Identification Chart (1 Of 2)
G04848871Courtesy of SUZUKI OF AMERICA CORP.

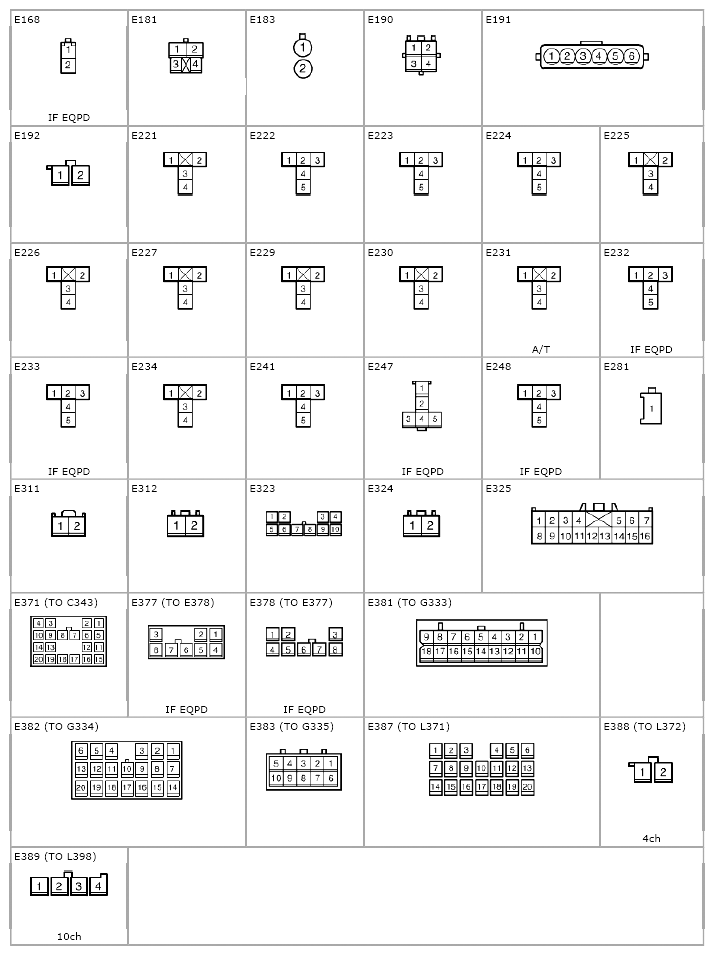

Fig 2: E - Connector Identification Chart (2 Of 2)
G04848872Courtesy of SUZUKI OF AMERICA CORP.
