Symbols and Marks

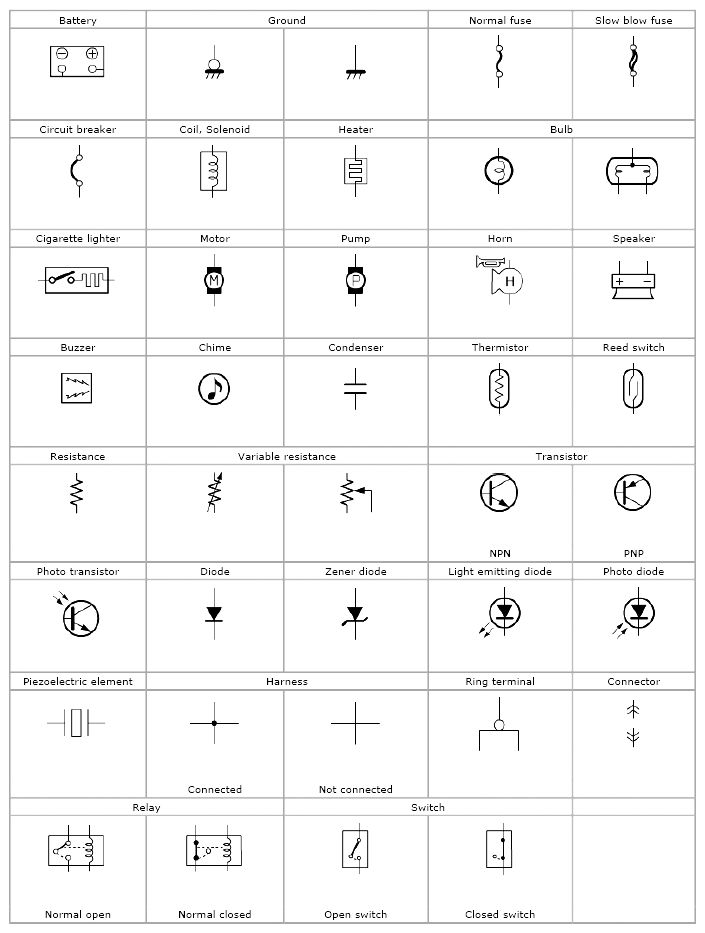

Fig 1: Electrical Symbols And Marks Chart (1 Of 2)
G04848838Courtesy of SUZUKI OF AMERICA CORP.

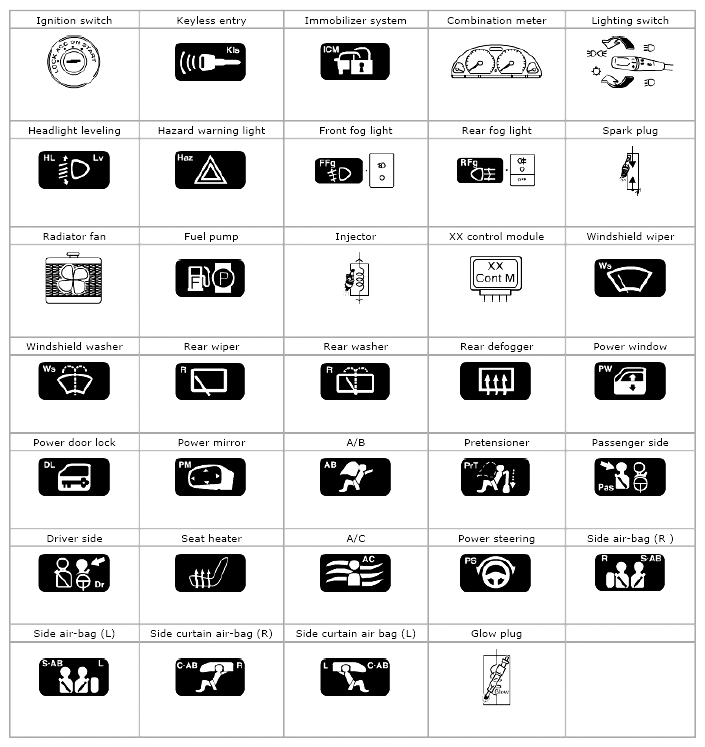

Fig 2: Electrical Symbols And Marks Chart (2 Of 2)
G04848839Courtesy of SUZUKI OF AMERICA CORP.
