How to Read Connector Codes and Terminal Nos.

Connector code/Terminal No./Terminal layout
- The connector shape and terminal layout shown in this article are those when viewed from "Z" in the illustration.
  Refer to LIST OF CONNECTORS .

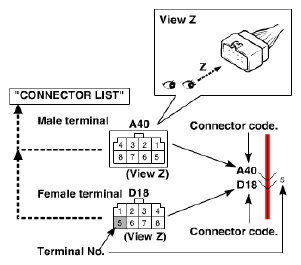

  Fig 1: Identifying Connector Code / Terminal No. / Terminal Layout
  Courtesy of SUZUKI OF AMERICA CORP.

  NOTE: Molded terminal numbers that are different from the above can be found on some connectors in rare cases.
  These molded numbers are not applied in this article.
Connector type

Fig 2: Connector Identification Procedure
Courtesy of SUZUKI OF AMERICA CORP.

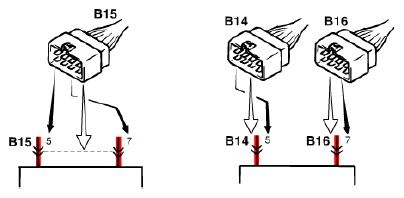

Terminals in one connector (Broken line) (B15)/Terminals in different connectors (B14, B16)

Fig 3: Connector Identification Procedure
Courtesy of SUZUKI OF AMERICA CORP.

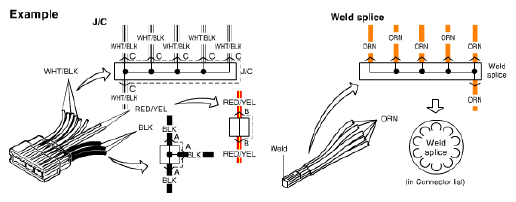

Joint connector (J/C)
- The joint connector (J/C) connects several different wires with the same wire color at one place instead of connecting them by welding or caulking one by one. It is not an ordinary connector but a part of the continuous wire in the harness.

  Fig 4: Identifying Joint Connector
  Courtesy of SUZUKI OF AMERICA CORP.

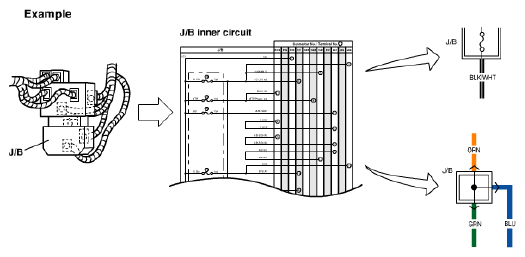

Junction block (J/B)

Fig 5: Identifying Junction Block
Courtesy of SUZUKI OF AMERICA CORP.
Connector location, shape and terminal No.
Refer to CONNECTOR LAYOUT DIAGRAM .

Refer to SYSTEM CIRCUIT DIAGRAM .

Refer to LIST OF CONNECTORS .
