Body Electrical Control System Wiring Circuit Diagram
Reference:
BCM GENERAL DESCRIPTION

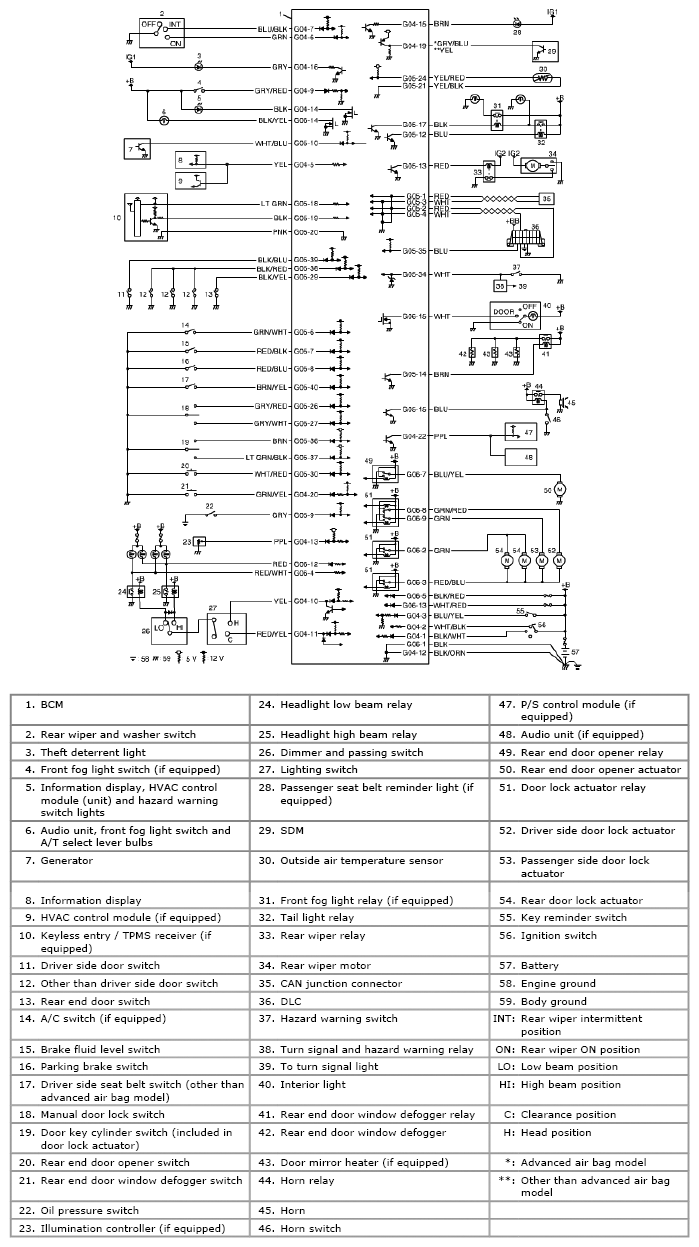

Fig 1: Identifying Body Electrical Control System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
