BCM and Related System Component Location

Reference: BCM GENERAL DESCRIPTION

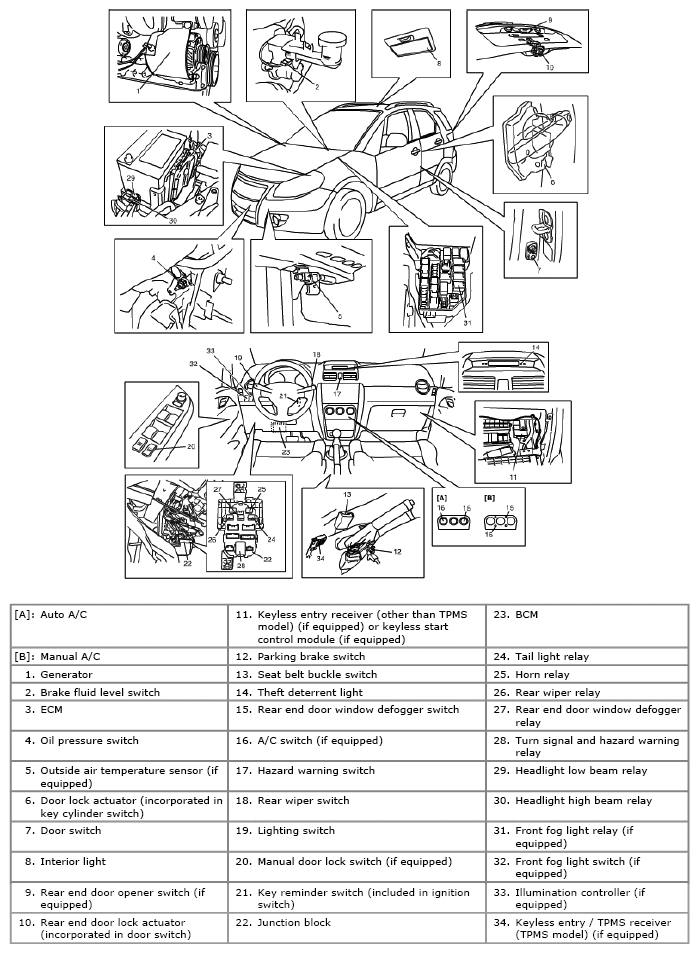

Fig 1: Identifying BCM & Related System Components
G04849127Courtesy of SUZUKI OF AMERICA CORP.
