Propeller Shaft Assembly Removal and Installation: Removal

Hoist vehicle.
Before removing propeller shaft assembly, give match marks (2) on joint flange and propeller shaft as shown.
Separate propeller shaft assembly (1) from transfer output flange and rear differential flange.

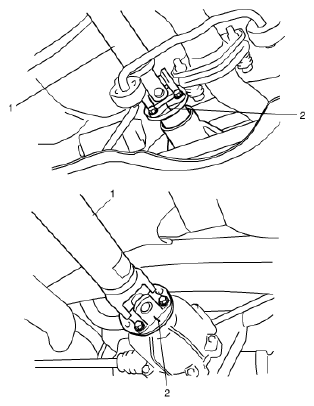

Fig 1: Identifying Match Marks On Joint Flange And Propeller Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove propeller shaft by removing center support nuts (1).
CAUTION: Use care not to drop it. Otherwise, vibration may occur during driving.

Fig 2: Identifying Center Support Nuts
Courtesy of SUZUKI OF AMERICA CORP.
