Rear Differential Mountings Components

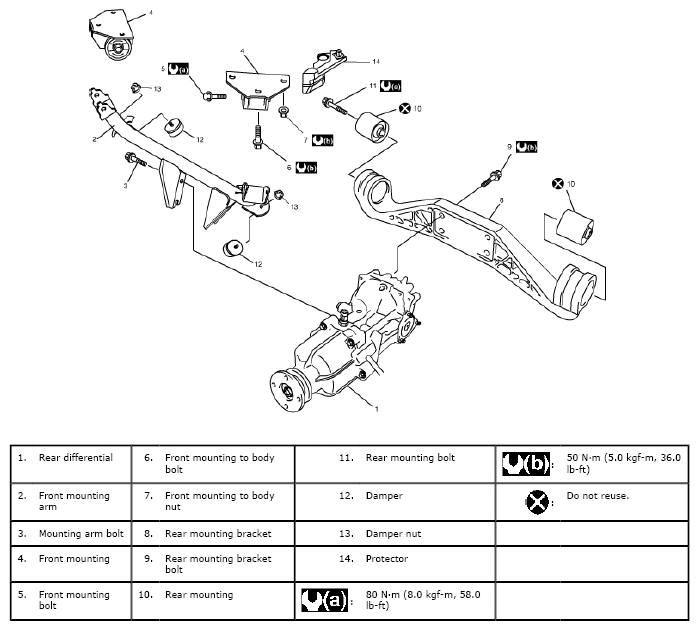

Fig 1: Rear Differential Mountings Replacement Components With Torque Specifications
G04847339Courtesy of SUZUKI OF AMERICA CORP.
