Rear Differential Components

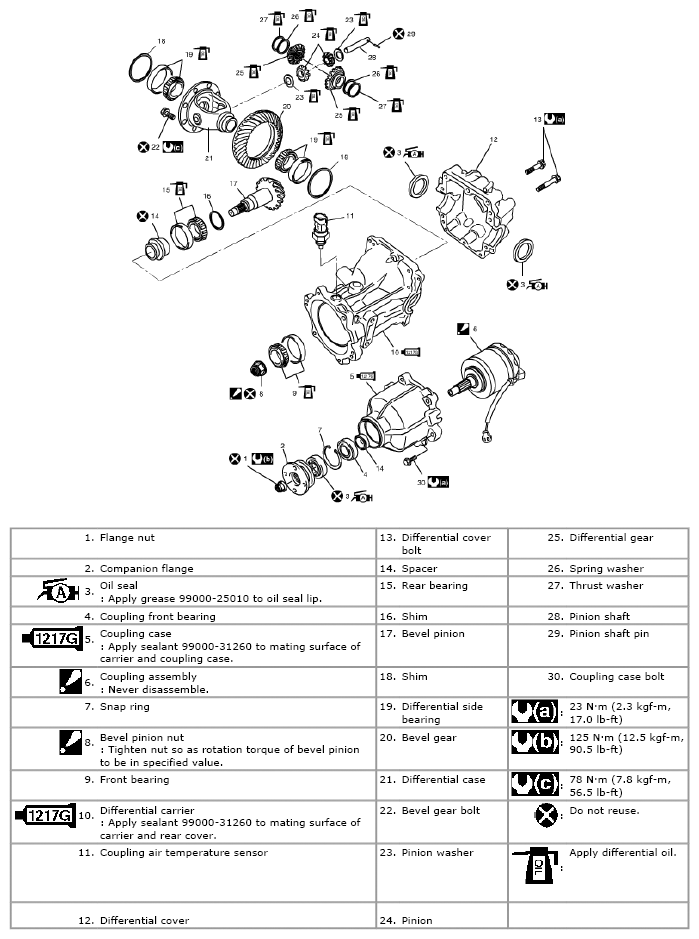

Fig 1: Exploded View Of Rear Differential Components (With Torque Specifications)
G04847343Courtesy of SUZUKI OF AMERICA CORP.
