Front Drive Shaft Components

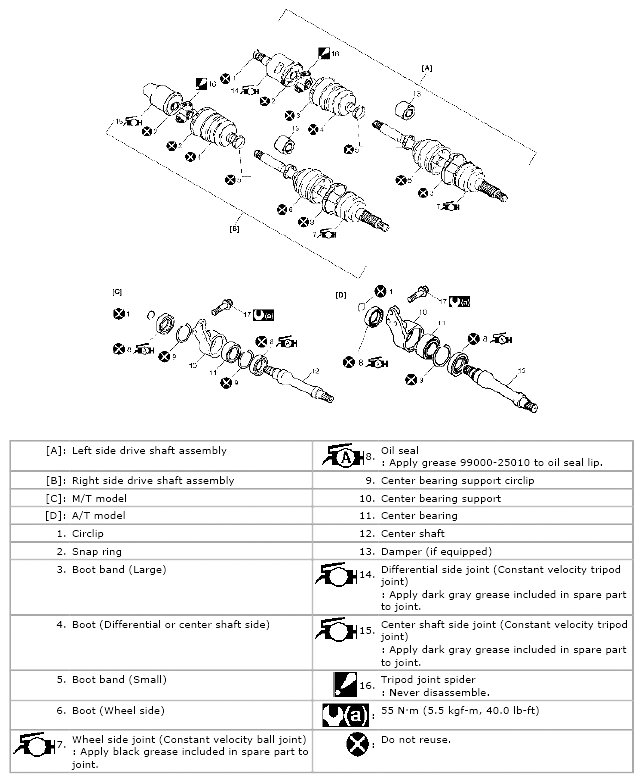

Fig 1: Front Drive Shaft Replacement Components & Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
