Front Drive Shaft Assembly Components Location

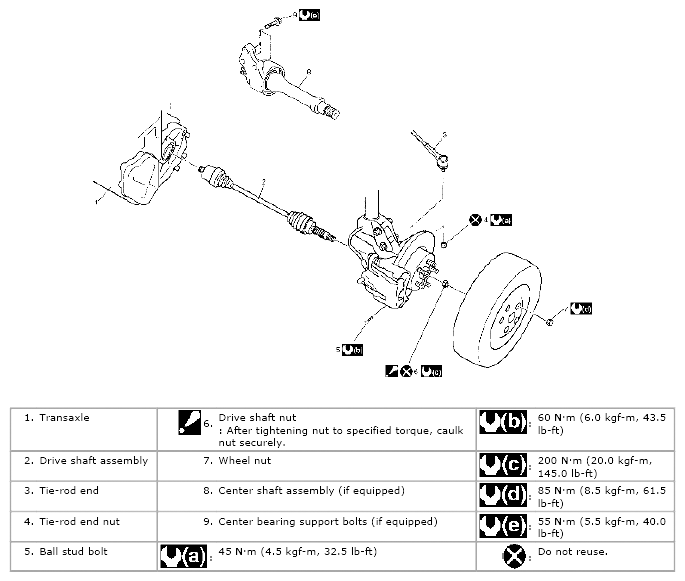

Fig 1: Front Drive Shaft Assembly Replacement Components & Torque Specification
G04847271Courtesy of SUZUKI OF AMERICA CORP.
