ABS (ESP®) Hydraulic Unit / Control Module Assembly Removal and Installation: Removal

Disconnect negative cable from battery.
Disconnect ABS (ESP®) hydraulic unit / control module assembly connector (1) by pull up the lock (2).

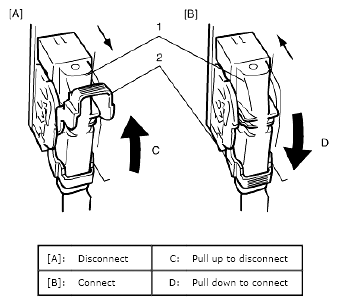

Fig 1: Identifying ABS (ESP®) Hydraulic Unit / Control Module Assembly Connector And Lock
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool, loosen flare nuts (1) and disconnect brake pipes (2) from ABS (ESP®) hydraulic unit / control module assembly (3).
Special Tool

(A): 09950-78220

NOTE: Put bleeder plug cap or the like onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.

Fig 2: Disconnecting Brake Pipes From ABS (ESP®) Hydraulic Unit / Control Module Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove ABS hydraulic unit / control module with bracket from vehicle by removing two bracket bolts.
Remove bolt and pull out ABS hydraulic unit / control module assembly (1) from bracket (3) using flat end rod or the like (2).
CAUTION:
- Do not give an impact to hydraulic unit.
- Use care not to allow dust to enter hydraulic unit.
- Do not place hydraulic unit on its side or upside down. Handling it in inappropriate way will affect its original performance.
Fig 3: Identifying ABS Hydraulic Unit / Control Module Assembly And Bracket
Courtesy of SUZUKI OF AMERICA CORP.
