Serial Data Link Circuit Check: Wiring Diagram

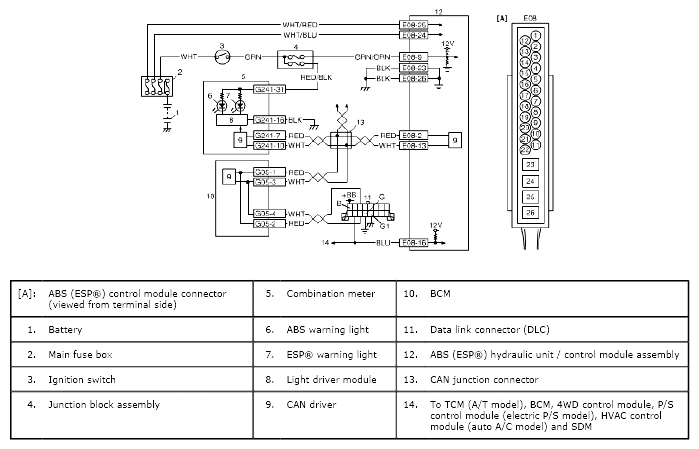

Fig 1: Serial Data Link Circuit Check - Wiring Diagram
G04847642Courtesy of SUZUKI OF AMERICA CORP.
