ABS (ESP®) Hydraulic Unit / Control Module Assembly Power and Ground Circuit Check: Wiring Diagram

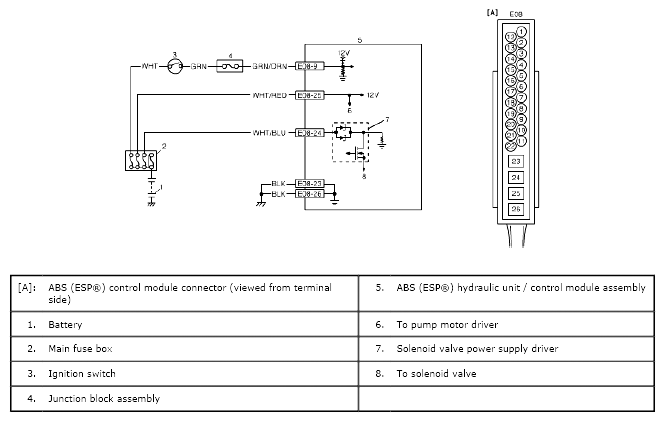

Fig 1: ABS (ESP®) Hydraulic Unit / Control Module Assembly Power And Ground Check - Wiring Diagram
G04847650Courtesy of SUZUKI OF AMERICA CORP.
