Steering Wheel and Column Construction

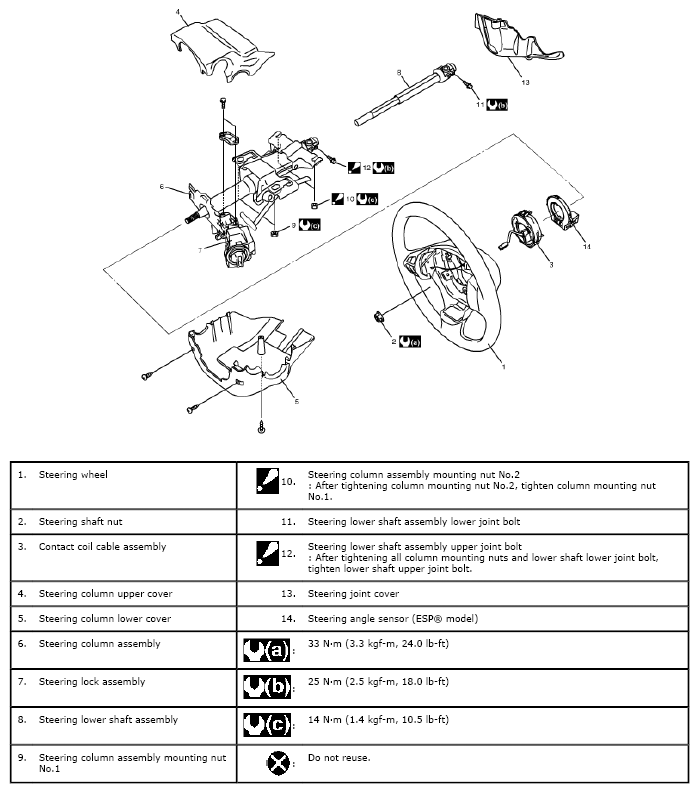

Fig 1: Identifying Steering Wheel And Column Components With Tightening Torques
G04848199Courtesy of SUZUKI OF AMERICA CORP.
