Under Coating Application Areas

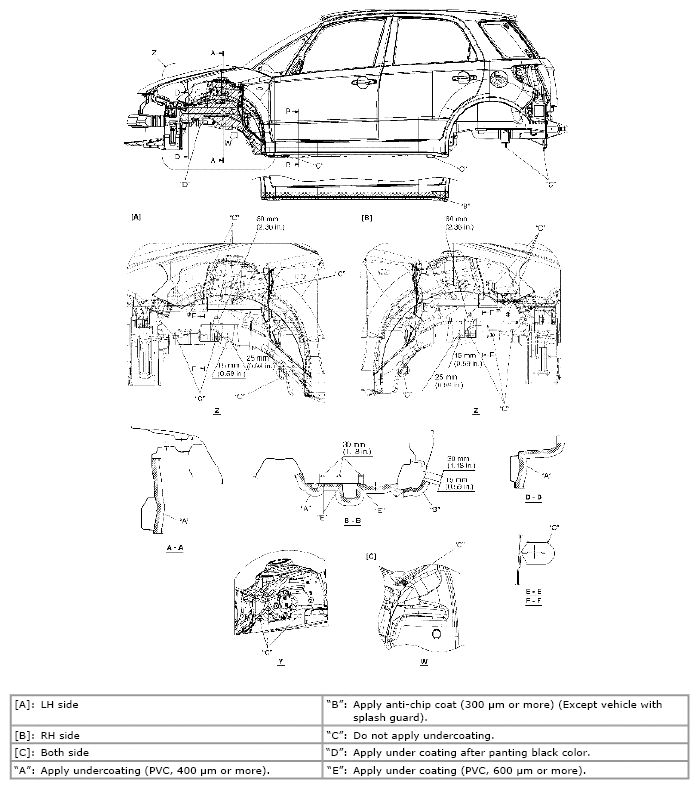

Fig 1: Dimensions - Under Coating Application Areas (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

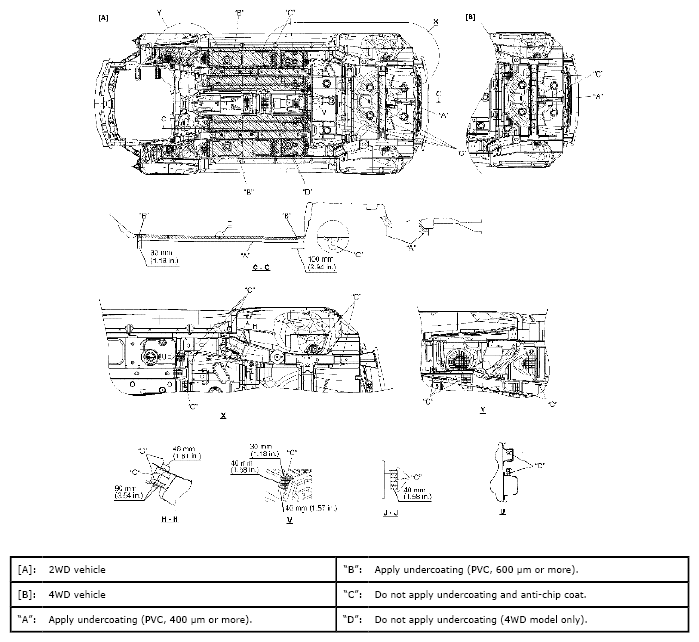

Fig 2: Dimensions - Under Coating Application Areas (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
