ICM Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Disable air bag system referring to EXCEPT ADVANCED AIR BAG .
  3. Remove driver air bag (inflator) module referring to EXCEPT ADVANCED AIR BAG .
  4. Remove steering wheel referring to STEERING WHEEL REMOVAL AND INSTALLATION .
  5. Remove steering column lower and upper covers.
  6. Remove engine start knob if equipped with keyless start system.
  7. Disconnect connector (1) from ICM (2).
  8. Remove a screw (3) from ICM.

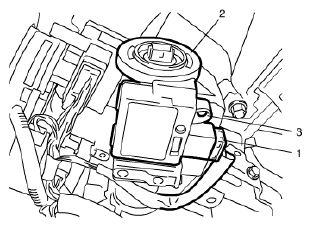

    Fig 1: Identifying ICM And Connector
    G04849162Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove ICM from steering lock assembly or steering lock unit.
    NOTE: The antenna part of ICM is fragile. Therefore, do not add strong power to the part or twist the part.
