Rear Wiper Relay Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove junction block (1).
  3. Remove rear wiper relay (2) from junction block.

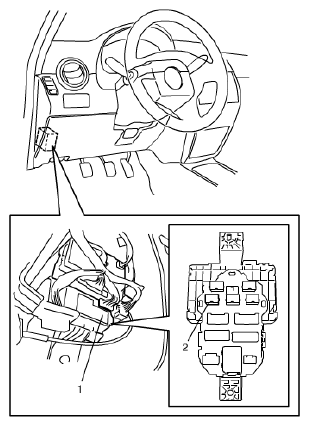

    Fig 1: Identifying Rear Wiper Relay
    G04848978Courtesy of SUZUKI OF AMERICA CORP.
