SX4 Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Warning Systems
>>
Tire Pressure Monitoring System
>>
Schematic and Routing Diagram
>>
TPMS Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

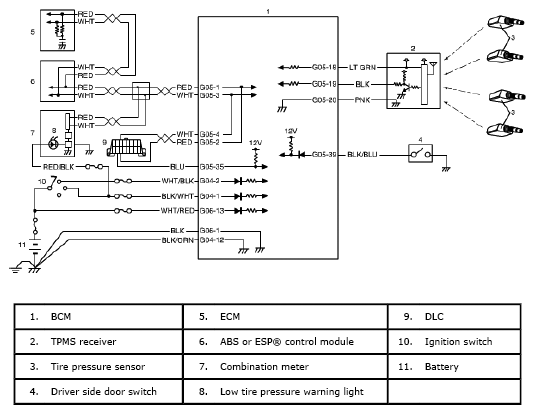

TPMS Wiring Circuit Diagram
Fig 1: TPMS Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
