Ignition System Wiring Circuit Diagram

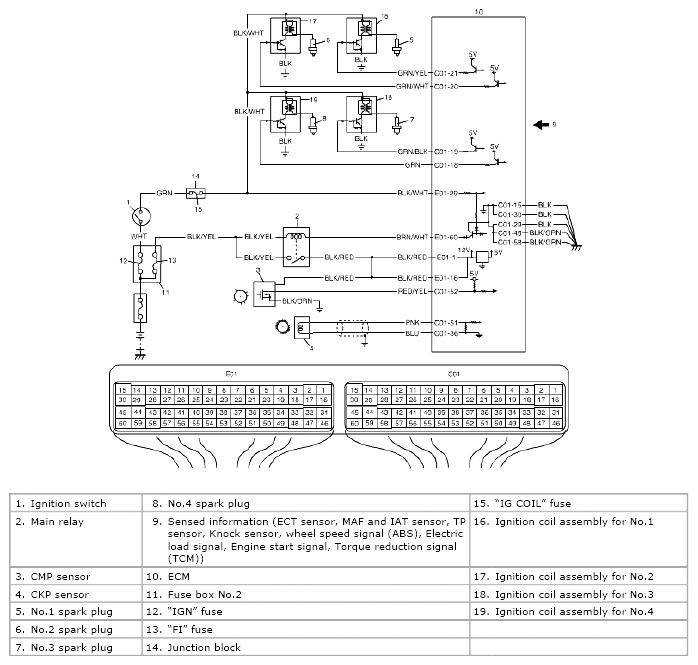

Fig 1: Ignition System Circuit
Courtesy of SUZUKI OF AMERICA CORP.
