CAN schematic and routing diagram

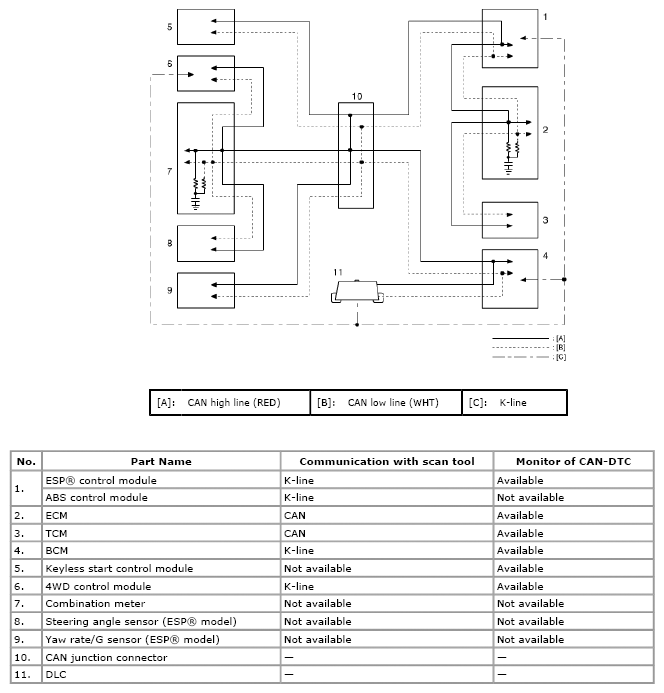

Fig 1: CAN Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
