DTC P0480: Fan 1 Control Circuit: Wiring Diagram

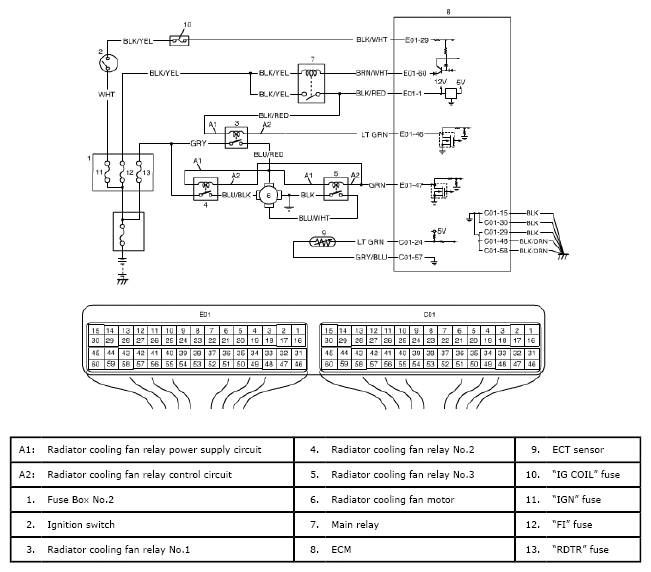

Fig 1: Fan 1 Control Circuit - Wiring Diagram

G04846576

Courtesy of SUZUKI OF AMERICA CORP.
