Timing Chain Cover Components

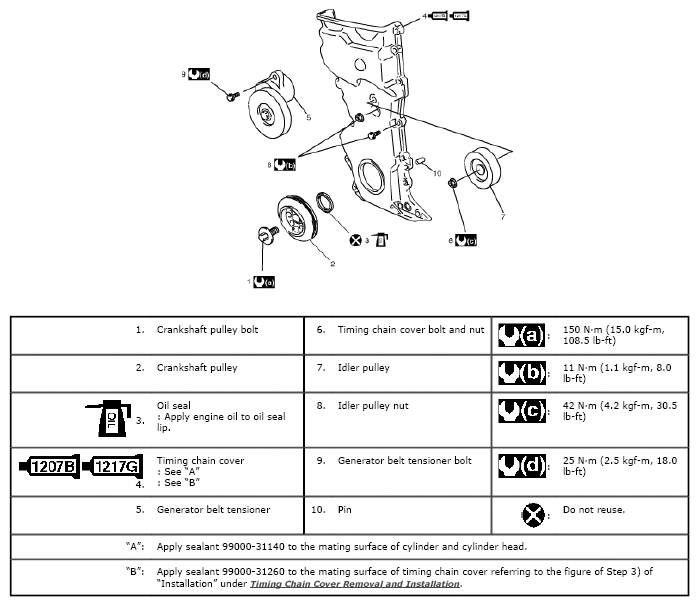

Fig 1: Timing Chain Cover Replacement Components With Torque Specifications
G04846782Courtesy of SUZUKI OF AMERICA CORP.
