Front Door Lock Switch Inspection
- Remove door trim from door panel referring to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .

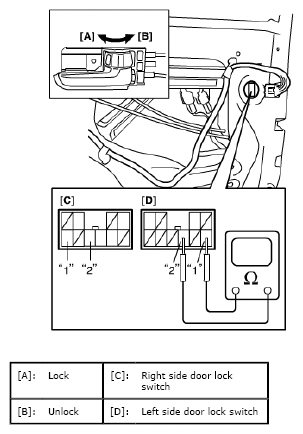

- Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.
Door lock switch specification
LOCK position: No continuity
UNLOCK position: Continuity
