Oil Pump 2nd Coast Brake and 2nd Brake Components

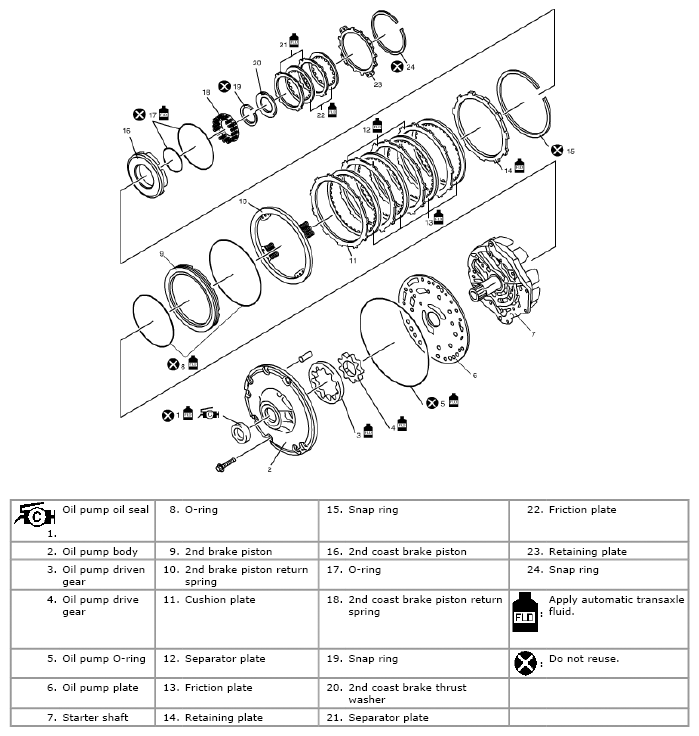

Fig 1: Exploded View Of Oil Pump 2nd Coast Brake & 2nd Brake Components
G04847850Courtesy of SUZUKI OF AMERICA CORP.
