2nd Coast Brake and 2nd Brake Preliminary Check

Reference: AUTOMATIC TRANSAXLE UNIT DISASSEMBLY

Reference: AUTOMATIC TRANSAXLE UNIT ASSEMBLY

1. Measure 2nd brake piston stroke while applying and releasing compressed air (400 - 800 kPa, 4 - 8 kg/cm² , 57 - 113 psi) through oil hole (1) by using special tools.

   If measured piston stroke exceeds specified value, disassemble and inspect inner parts.

   Special Tool

   1. 09900-20607
   2. 09900-20701

   2nd brake piston stroke

   Standard: 1.91 - 2.69 mm (0.075 - 0.106 in.)

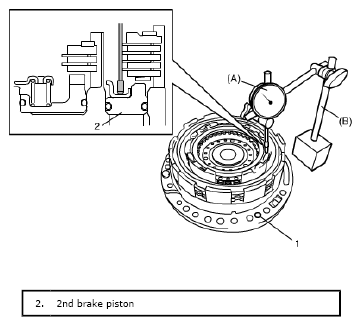

   Fig 1: Measuring 2nd Brake Piston Stroke

   Courtesy of SUZUKI OF AMERICA CORP.
2. Measure 2nd coast brake piston stroke while applying and releasing compressed air (400 - 800 kPa, 4 - 8 kg/cm² , 57 - 113 psi) through oil hole (1) by using special tools.

   If measured piston stroke exceeds specified valve, disassemble and inspect inner parts.

   Special Tool

   1. 09900-20607
   2. 09900-20701

   2nd coast brake piston stroke

   Standard: 0.82 - 1.66 mm (0.032 - 0.156 in.)

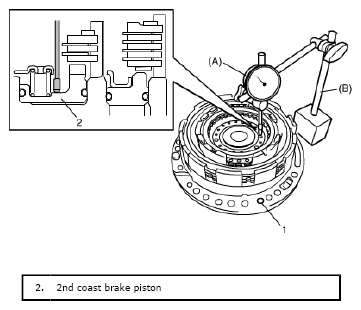

   Fig 2: Measuring 2nd Brake Piston Stroke

   Courtesy of SUZUKI OF AMERICA CORP.
