Front Suspension Frame, Stabilizer Bar and/or Bushing Components

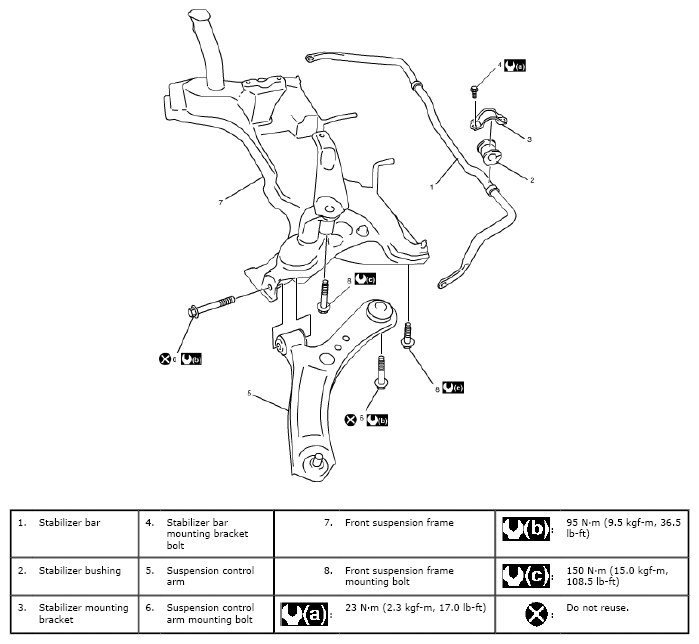

Fig 1: Front Suspension Frame, Stabilizer Bar And/Or Bushing Replacement Components & Torque Specification
G04847185Courtesy of SUZUKI OF AMERICA CORP.
