Front Strut Assembly Removal and Installation: Installation

Reference: FRONT STRUT ASSEMBLY CHECK

Install strut assembly by reversing removal procedure, noting the following instructions.

• Insert bolts in such direction as shown in figure.
• Tighten all fasteners to specified torque.

  Tightening torque

  Strut bracket nut a: 140 N.m (14.0 kg-m, 101.5 lb-ft)

  Brake hose mounting bolt c: 26 N.m (2.6 kg-m, 19.0 lb-ft)

  Stabilizer joint nut d: 50 N.m (5.0 kg-m, 36.5 lb-ft)

  CAUTION: Never reuse the removed strut bracket nut.
• Lower hoist and vehicle in unloaded condition, tighten strut nut (b) to specified torque.

  Tightening torque

  Strut nut b: 50 N.m (5.0 kg-m, 36.5 lb-ft)

  NOTE: Don't twist brake hose and wheel speed sensor harness when installing them.

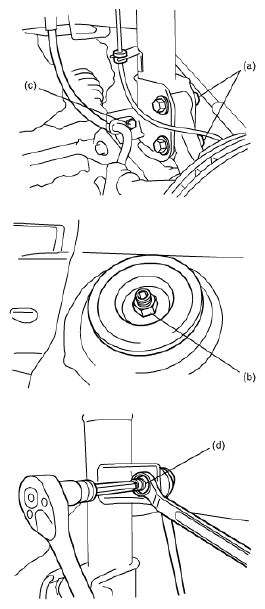

  Fig 1: Identifying Strut Bracket Nut, Brake Hose Mounting Bolt And Stabilizer Joint Nut

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten wheel nut to specified torque.

  Tightening torque

  Wheel nut: 85 N.m (8.5 kg-m, 61.5 lb-ft)

• After installation, confirm front wheel alignment.
