Service Manual Update: Front Toe Adjustment And Steering Angle Check Procedure (TS 01 08167)

Publication date: 2007-08-16
Reference number: TS 01 08167

SERVICE MANUAL UPDATE: FRONT TOE ADJUSTMENT AND STEERING ANGLE CHECK PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 01 08167, Date of Issue: August 16, 2007

SUZUKI:	2007 SX4 (RW420)
SECTION:	Suspension-Wheels and Tires

CONDITION

The front toe adjustment procedure and front steering angle check procedure has been revised.

CAUSE

Procedure was incomplete.

CORRECTION

Please refer to the attached service manual section when making any adjustments to the front toe or checking the steering angle. Insert the attached pages into the appropriate section of the service manual for future reference.

AFFECTED SERVICE MANUALS

Name of Manuals	Part Numbers	Corresponding Pages
2007 MY SX4 (RW420) Service Manual	99500S80J00-33E	Page 2B-2~2B-3

NOTE: This update will reflect in future printings of the service manuals. If the reprint date on the last page of the manual is later than the issue date of this bulletin, the manual will have been corrected.

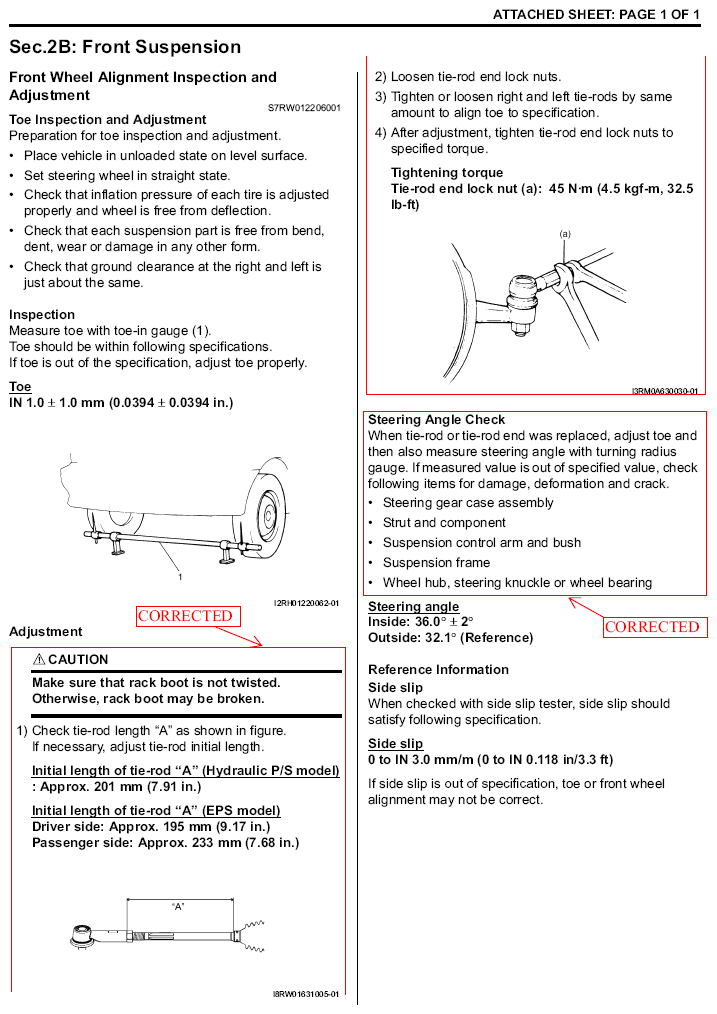

Fig 1: View Of Front Wheel Alignment Inspection And Adjustment

Courtesy of SUZUKI OF AMERICA CORP.
