Service Manual Update: Production Change Of Steering Column (TS 01 09127)
Publication date: 2007-09-12Reference number: TS 01 09127
SERVICE MANUAL UPDATE: PRODUCTION CHANGE OF STEERING COLUMN
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 01 09127, Date of Issue:
September 12, 2007
| SUZUKI: | 2007 SX4 (RW420) |
| SECTION: | Steering |
CONDITION
When checking the steering column for accident damage be sure to use the correct specifications for the type of column installed.
CAUSE
This model may be equipped with either one of two types of steering columns. Type "A" from Delphi or Type "B" from NSK. See attached service manual page.
CORRECTION

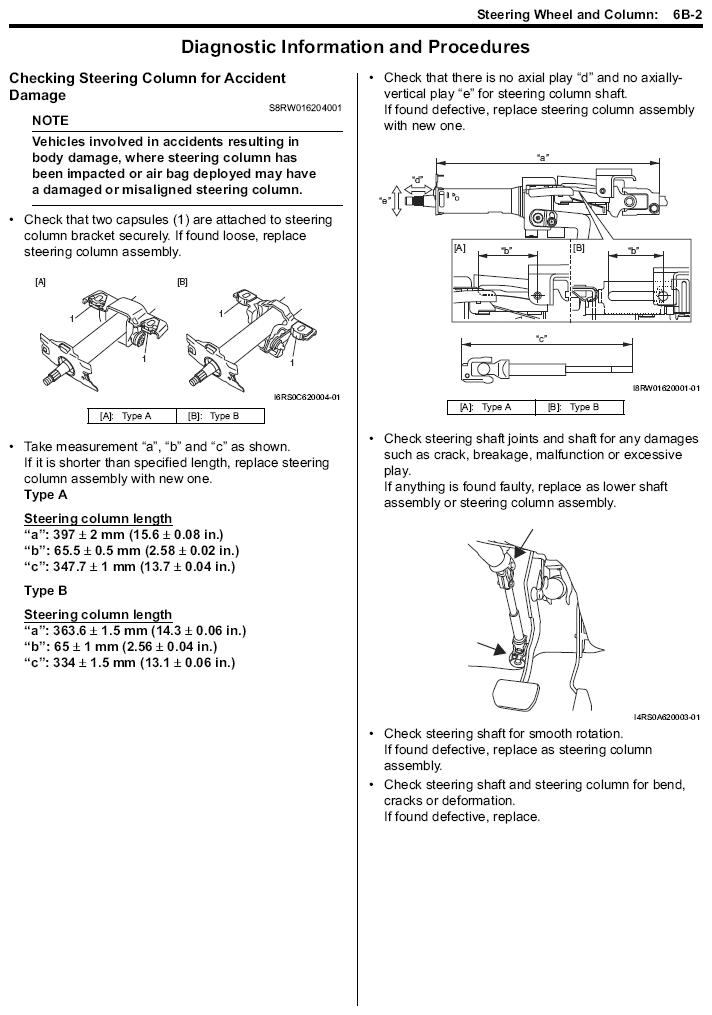

Additional information has been added to the service manual for type "A" and type "B" steering columns. Please add the page below to your service manual in the appropriate section and cross out the section in your service manual that the corresponding section below is replacing.
AFFECTED SERVICE MANUALS
AFFECTED SERVICE MANUALS
| Name of Manuals | Part Numbers | Corresponding Pages | Note |
|---|---|---|---|
| 2007MY SX4 (RW420) Service Manual | 99500S80J00-33E | Page 6B-2 | "Steering Wheel and Column" Checking Steering Column for Accident Damage |
NOTE:
These updates will be reflected in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
