A/C Warning Label Missing (TS 01 08316)
Publication date: 2006-08-31Reference number: TS 01 08316
A/C WARNING LABEL MISSING
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 01 08316, Date of Issue:
August 31, 2006
| SUZUKI: | 2007 SX4(RW420) |
| SECTION: | Body, Cab and Accessories |
AFFECTED VIN(S)
~JS2YB413775103495
CONDITION
Some vehicles were produced without the air conditioning refrigerant warning label. All affected vehicles should have the label fitted prior to sale. Dealers with affected vehicles in their inventory were mailed a list of VINs and stickers. Customers will be contact by ASMC by phone and letter. Customers can choose to install the label themselves, or have a Suzuki dealership install it for them.
CAUSE
N/A
CORRECTION
Follow the instruction below to add the A/C warning label under the hood above the grill.
PART(S) INFORMATION
PART(S) INFORMATION
| Part Numbers | Description | QTY | Notes |
|---|---|---|---|
| 95951-80J00 | Plate, Warning A/C | 1 | A suitable quantity of labels will be provided to each affected dealership. |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| TB9999 | Plate, Warning A/C | 95951-80J00 | 99 | MD | 0.1 hrs. |
Claim must be submitted as regular single claim entry,-not regular multi claim entry
SX4 A/C Warning Label Installation Instructions
Remove any dirt or grease from the top of the front Bumper assembly just to the right of the hood latch.

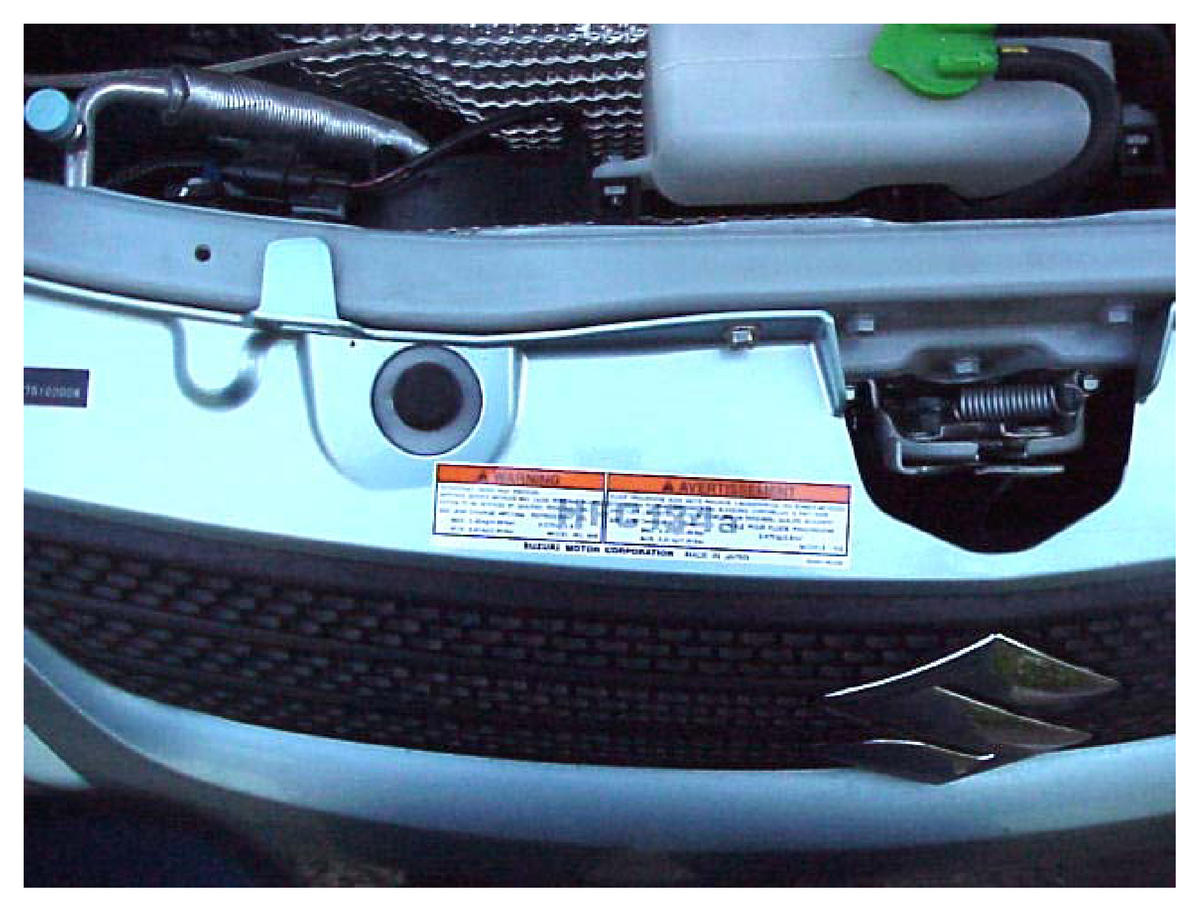

Apply the A/C Warning Sticker as shown below.
