MIL ON WITH DTC P0607 (ECM INTERNAL PROCESSOR ERROR) CUSTOMER SATISFACTION CAMPAIGN "ML"
TECHNICAL SERVICE BULLETIN
| SUZUKI: | 2007 SX4 |
| SECTION: | Engine |
AFFECTED VIN(S)
M/T ~JS2YB413_75105389
~JS2YB415_75101000
~JS2YB417_75101000
A/T ~JS2YB413_75105345
~JS2YB415_75100986
~JS2YB417_75100122
CONDITION
Affected vehicles may experience a false illumination of the Malfunction Indicator Lamp (MIL) with DTC P0607 (ECM Internal Processing Error).
CAUSE
ECM software logic.
CORRECTION
Reprogram the Engine Control Module (ECM) on all vehicles in dealer inventory and on all customer vehicles brought to your service department. This only applies to vehicles listed before VIN shown in the "Affected VINs" above. ASMC will notify owners of this service action by mail. If a SX4 owner should contact your dealership for assistance, please take the appropriate action to provide the best possible customer service.
Refer to the General TSB 05 XXXXX "ECM (ECU) Reprogramming Verification Procedure Using the Suzuki SDS Tool" . If the vehicle does not have the latest version follow the reprogramming procedure described below.
CLAIM SUBMISSION
Please refer to the Campaign Bulletin SC-33 for claim submission instructions, labor times and owner notification information.
REQUIRED TOOLS AND SOFTWARE
| Part Numbers | Description | Qty | Notes |
|---|---|---|---|
| 09910-06520 | SDS Tool Kit | 1 | Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable |
REQUIRED TOOLS AND SOFTWARE
| Part Numbers | Description | Qty | Notes |
|---|---|---|---|
| Suzuki Pitstop | Pass-Thru Reprogramming Software SOFTWARE.EXE |
1 | Version 1.8.3.0 or later Requires serial number to activate |
| Suzuki Pitstop | Database DATABASE.EXE |
1 | Version 2.006.1004 or later. Requires serial number to activate. |
| 99963-01501-224 | Reprogram Label | 1 | Please Fill Out Completely and Affix to the Interior of the Glove Box |
| Suzuki Pitstop | Suzuki Pass-Thru Reprogramming Tool Operator's Manual | 1 | Version 11156 or later. New version number can be found on the last page. Must be read and understood completely before attempting to reprogram a vehicle. |
Reprogramming Procedure
- Access the Suzuki Pitstop.
- Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
- Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "SOFTWARE.EXE", (if it is not already installed).
- Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. Download and unzip Suzuki Pass-Thru Reprogramming Data Base "DATABASE.EXE" onto your PC. This step is only required to be done once to accommodate all vehicles covered under this TSB.NOTE: This Database "DATABASE.EXE" has been updated with newer data for reprogramming without changing the file name. You are requested to download in order to update the database in your PC.

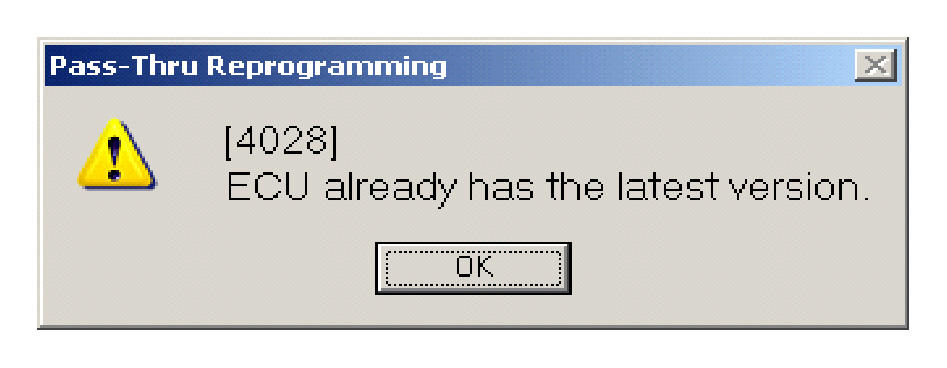

- Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the ECM reprogramming software. If the message "[4028] ECU already has the latest version" appears, click "OK" and continue to step 6. The glove box label should already be in the glove box.

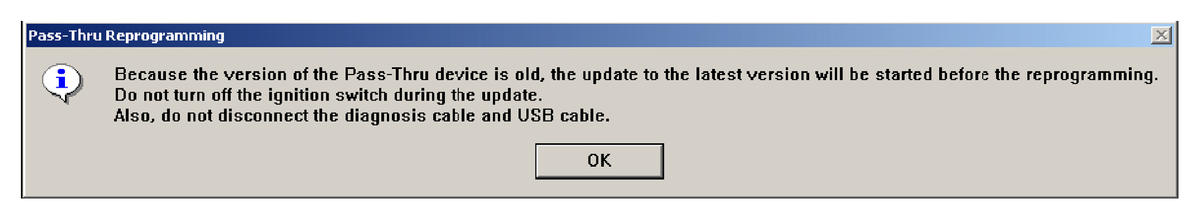

NOTE: You may see the message below when programming. If so follow the instructions then restart the programming procedure.

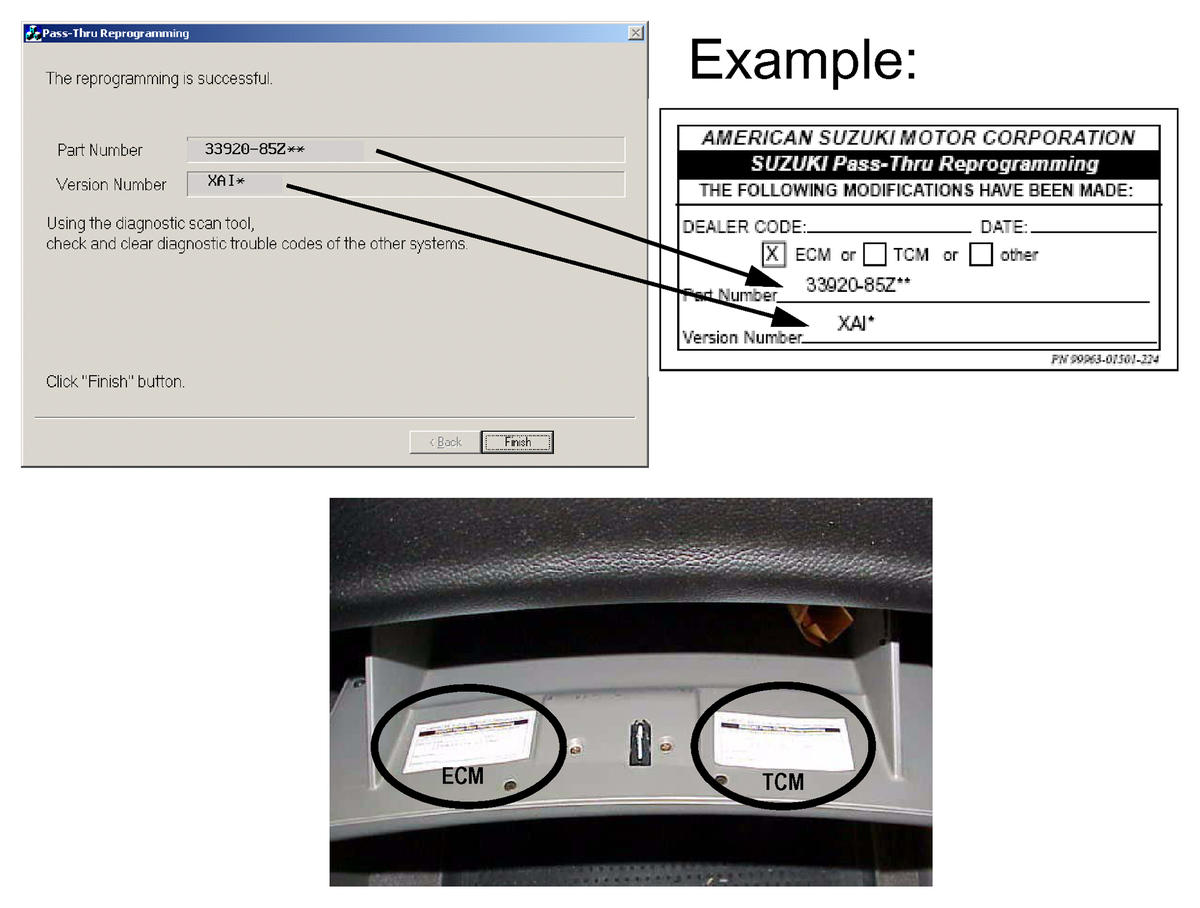

- Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.NOTE: If the symptom remains after reflashing, contact the S.M.A.R.T. Hotline for assistance.
