Esp®/Abs/Brake/Esp® Off/Slip Light On After Replacement Of Esp® Actuator Assembly: Service Manual Update (TS 01 06257)
Publication date: 2007-06-25Reference number: TS 01 06257
ESP® / ABS / BRAKE / ESP® OFF/ SLIP LIGHT ON AFTER REPLACEMENT OF ESP® ACTUATOR ASSEMBLY: SERVICE MANUAL UPDATE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 01 06257, Date of Issue:
June 25, 2007
| SUZUKI: | 2007 SX4 (RW420) |
| SECTION: | Brake System |
CONDITION
The ESP® and all related warning lights remain ON after replacement of the ESP® actuator assembly.
CAUSE
The sensor calibration process after replacement of the ESP® actuator assembly is not referenced in the removal and installation section of the Service manual.
CORRECTION
The attached service manual pages contain additional information for the ESP® actuator assembly after replacement. Please replace pages listed below in your 2007 MY SX4 service manuals.
AFFECTED SERVICE MAUNUALS
AFFECTED SERVICE MAUNUALS
| Name of Manuals | Part Numbers | Bulletin page | Corresponding Pages |
|---|---|---|---|

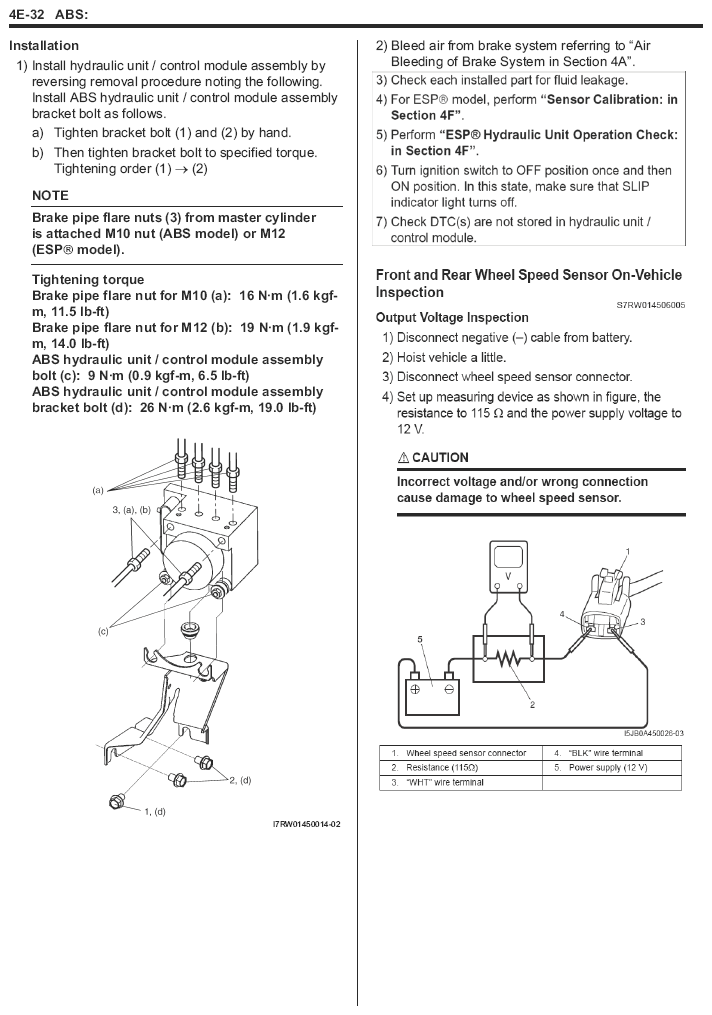

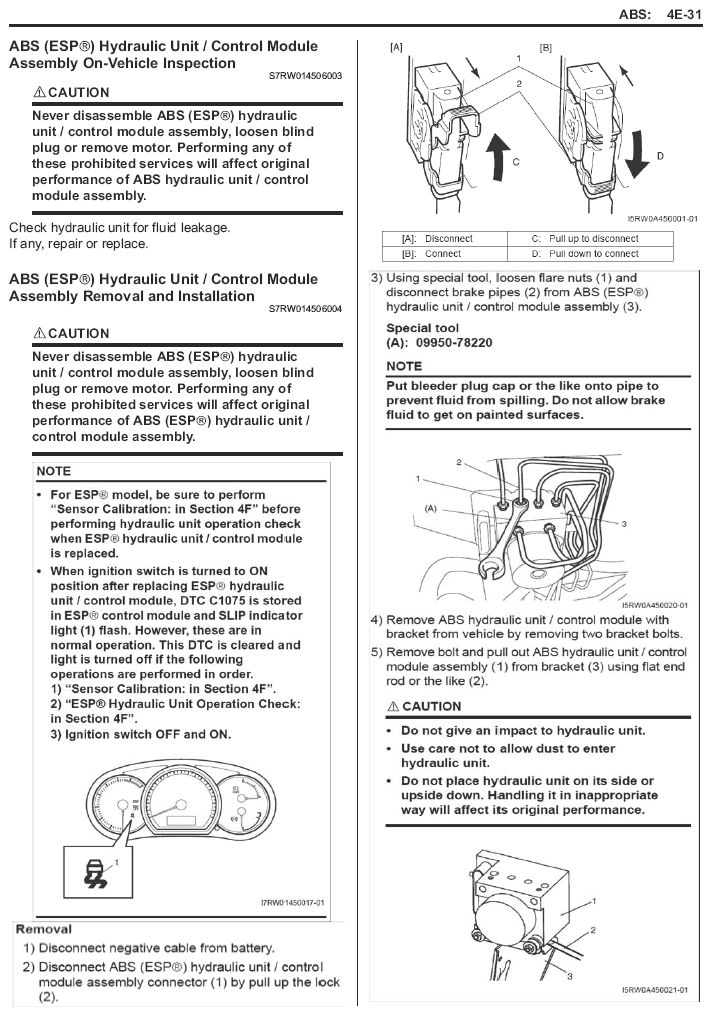

| 2007 MY SX4 (RW420) Service Manual | 99500S80J00-33E | 9 thru 17 | 4E-31 thru 4E-32 ABS (ESP®) Hydraulic Unit / Control Module Assembly Removal and Installation |
NOTE:
These updates will appear in future printings of the service manual. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
