Water Pump Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install a new gasket to the water pump.
Secure the water pump to the engine block with the mounting bolts.
Tighten:

Tighten the water pump mounting bolts to 23 N.m (17 lb-ft).

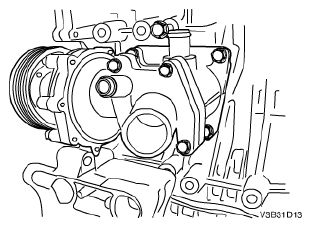

Fig 1: Identifying Coolant Pump To Engine Block With Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install a auto tensioner with the mounting bolt.
Tighten:

Tighten the auto tensioner bolt to 45 N.m (33 lb-ft).
Install the bracket.

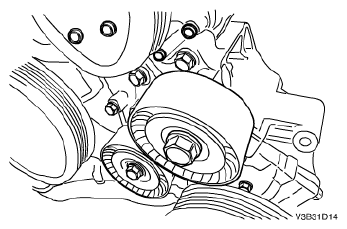

Fig 2: Identifying Auto Tensioner With Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the bracket bolts.
Tighten:

Tighten the bracket retaining bolts to 45 N.m (33 lb-ft).

Fig 3: Identifying Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the power steering pump.
Install the power steering pump retaining bolts.
Tighten:

Tighten the power steering pump retaining bolts to 25 N.m (18 lb-ft).
Install the generator. Refer to GENERATOR REMOVAL .
Install the compressor. Refer to COMPRESSOR INSTALLATION .

Fig 4: Removing/Installing Power Steering Pump Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the serpentine accessory drive belt. Refer to SERPENTINE ACCESSORY DRIVE BELT INSTALLATION .
Refill the engine cooling system. Refer to Draining and Refilling the Cooling System .

Fig 5: Identifying Thermostat Hose Clamp, Housing And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
