Front Strut Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the strut assembly and the strut bracket bolts and nuts.
Tighten:

Tighten the strut bracket bolts and nuts to 140 N.m (103 lb-ft).
Locate the brake hose and install the E-ring.
Connect the ABS sensor line, if equipped and install the tires.

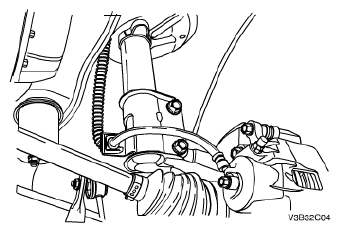

Fig 1: Identifying ABS Sensor Line
Courtesy of SUZUKI OF AMERICA CORP.
Install the cap and nuts from the strut upper areas.
Tighten:

Tighten the strut nuts to 50 N.m (37 lb-ft).
Install the wheels.

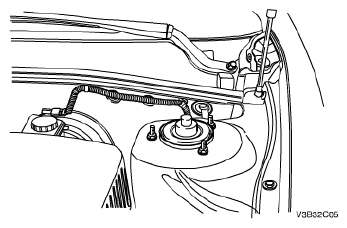

Fig 2: Identifying Cap And Nuts From Strut Upper Areas
Courtesy of SUZUKI OF AMERICA CORP.
