Throttle Body Assembly Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air filter outlet hose.

Fig 1: Identifying Air Filter Outlet Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove the coolant inlet and outlet hoses from the throttle body assembly.
Disconnect the main Electronic Throttle Control (ETC) connector.

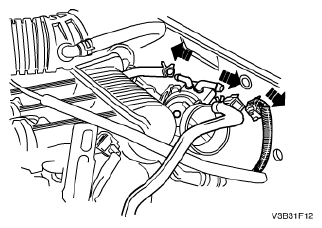

Fig 2: Disconnecting Electronic Throttle Control Connector, Coolant Inlet And Outlet Hoses
Courtesy of SUZUKI OF AMERICA CORP.
Remove the throttle body assembly.
Remove the throttle body gasket.
NOTE: Inspect the throttle body gasket for a distortion or damage.

Fig 3: Removing/Installing Throttle Body Gasket Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
