Chime Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the knee bolster trim panel beneath the steering column.
  3. Disconnect the electrical connector.
  4. Remove the screws and the chime module.

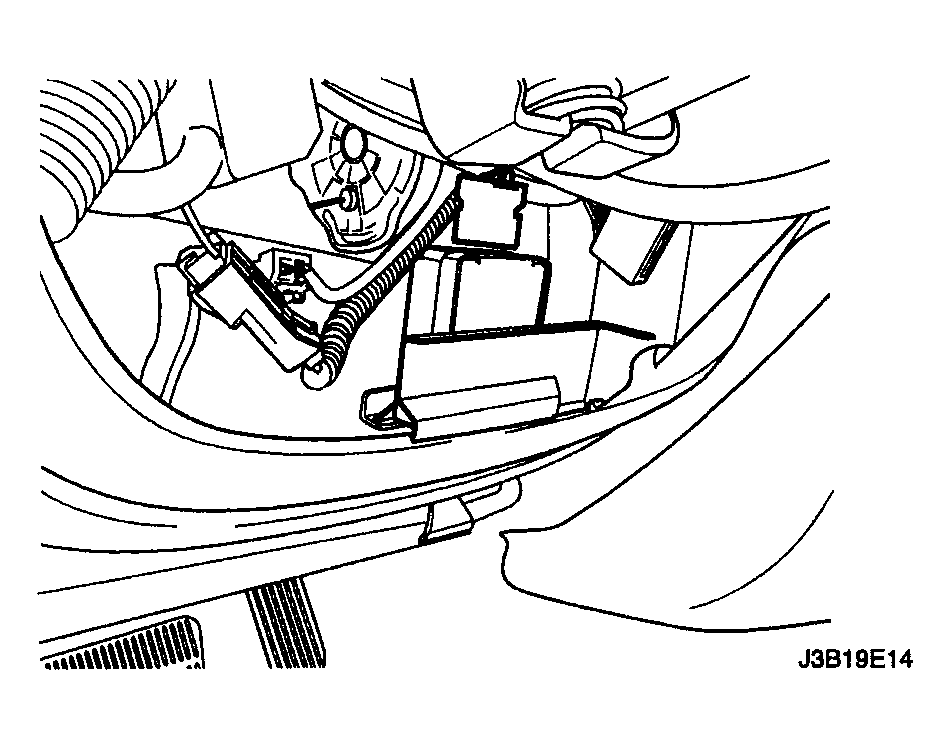

    Fig 1: Removing Chime Module
    G04104433Courtesy of SUZUKI OF AMERICA CORP.
