Chime Module Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the chime module with the screws.

    Tighten

    Tighten the chime module screws to 4 N.m (35 lb-in).

  2. Connect the electrical connector.
  3. Install the knee bolster trim panel beneath the steering column.
  4. Connect the negative battery cable.

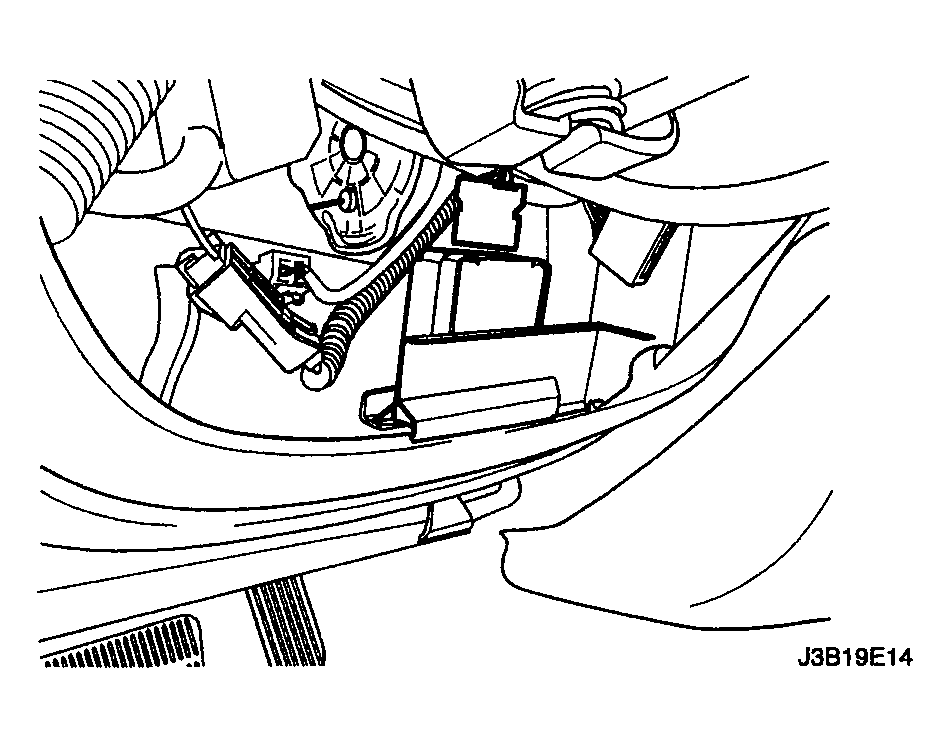

    Fig 1: Installing Chime Module
    G04104434Courtesy of SUZUKI OF AMERICA CORP.
