Side Airbag Sensor Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side airbag sensor.
  2. Install the side airbag sensor mounting bolts.

    Tighten:

    Tighten the side airbag sensor mounting bolts to 10 N.m (89 lb-in.).

  3. Install the trim on B-pillar.
  4. Connect the negative battery cable.

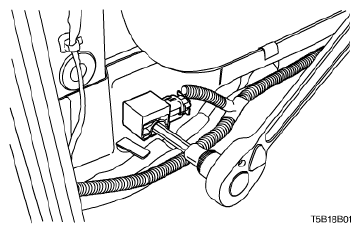

    Fig 1: Tightening Side Airbag Sensor Mounting Bolts
    G04717995Courtesy of SUZUKI OF AMERICA CORP.
