Engine Under Covers Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine under cover with the bolts.

    Tighten:

    Tighten the engine under cover bolts to 10 N.m (89 lb-in.).

  2. Lower the vehicle.

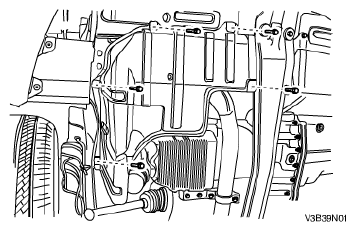

    Fig 1: Identifying Engine Under Cover With Bolts
    G04720282Courtesy of SUZUKI OF AMERICA CORP.
