Engine Under Covers Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine under cover with the bolts.
Tighten:

Tighten the engine under cover bolts to 3.5 N.m (31 lb-in).
Lower the vehicle.

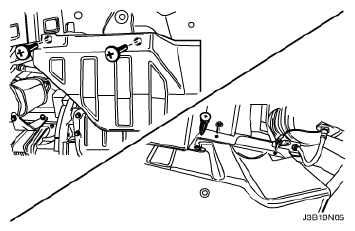

Fig 1: Identifying Bolts And Engine Under Cover
Courtesy of SUZUKI OF AMERICA CORP.
