Rear Window Wiper Motor Removal and Installation (For STATION WAGON Model): Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector.

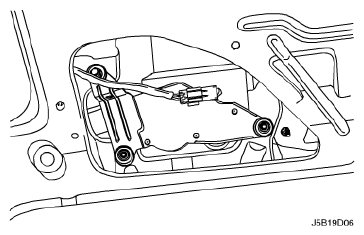

- Install the rear wiper motor with the bolts.
Tighten:
Tighten the rear wiper motor bolts to 9 N.m (80 lb-in).
- Install the station wagon door trim cover. Refer to TAILGATE LOWER GARNISH MOLDING REMOVAL AND INSTALLATION .
- Install the rear window wiper arm. Refer to Rear Window Wiper Arm Removal and Installation (For STATION WAGON Model) .
- Connect the negative battery cable.
