Condenser Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Discharge and recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
  3. Remove the front bumper. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION .
  4. Remove the discharge hose block-to-condenser retaining nut.
  5. Remove the discharge hose from the condenser.
  6. Remove the liquid pipe block-to-receiver-dryer retaining nut.
  7. Remove the liquid pipe from the receiver-dryer.
    Fig 1: Identifying Liquid Pipe Block-To-Receiver-Dryer And Discharge Hose Block-To-Condenser Retaining Nut
    G04717816Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the condenser mount bolts.
  9. Remove the condenser.
  10. Cap all the open lines and the fittings to prevent contamination.

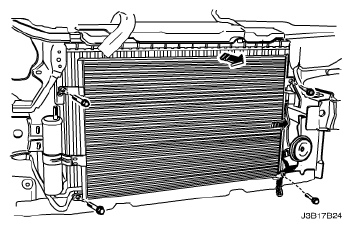

    Fig 2: Removing Condenser And Mounting Bolts
    G04717817Courtesy of SUZUKI OF AMERICA CORP.
