Condenser Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

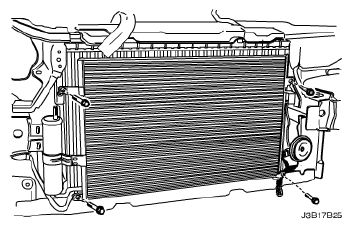

- Position the condenser into the vehicle.
- Install the condenser mount bolts.
Tighten:
Tighten the condenser mount bolts to 4 N.m (35 lb-in).

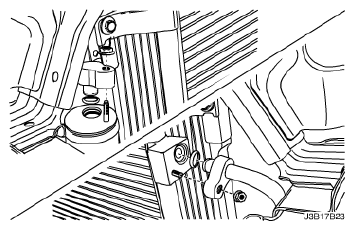

- Install a new O-ring onto the high-pressure pipe mounting block fitting on the receiver-dryer.
- Install the liquid pipe into the receiver-dryer.
- Install the liquid pipe block-to-receiver-dryer retaining nut.
Tighten:
Tighten the liquid pipe block-to-receiver-dryer retaining nut to 14 N.m (10 lb-ft).
- Install a new O-ring onto the discharge hose connecting block fitting.
- Install the discharge hose fitting into the condenser.
- Install the discharge hose connecting block-to-condenser retaining nut at the condenser connecting block.
Tighten:
Tighten the refrigerant discharge hose block-to-condenser retaining nut to 16 N.m (12 lb-ft).
- Install the front bumper. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
- Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
- Operate the HVAC control to verify the proper function of the heating and cooling systems.
