A/C Suction Hose Assembly Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Position the A/C suction hose into the vehicle.
Insert the suction hose block-to-compressor to the compressor.
Tighten:

Tighten the suction hose block-to-compressor retaining nut to 33 N.m (24 lb-ft).

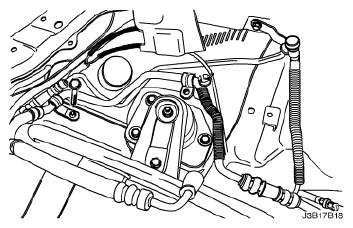

Fig 1: Identifying Suction Hose Block-To-Compressor Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the suction hose support clamp-to-longitudinal member.
Tighten:

Tighten the suction hose support clamp-to-longitudinal member bolt to 4 N.m (35 lb-in).

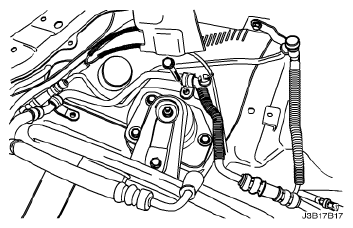

Fig 2: Identifying Suction Hose Support Clamp-To-Longitudinal Member Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the suction hose support clamp-to-engine bracket.
Tighten:

Tighten the suction hose support clamp-to-engine bracket bolt to 14 N.m (10 lb-ft).

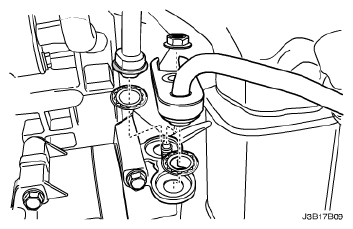

Fig 3: Identifying Suction Hose Support Clamp-To-Engine Bracket Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the suction hose block-to-expansion valve retaining nut at the fire wall.
Tighten:

Tighten the suction hose block-to-expansion valve retaining nut to 14 N.m (10 lb-ft).
Connect the electrical connector at the pressure transducer.
Install the air cleaner housing bolts and the air filter housing assembly.
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .

Fig 4: Identifying Suction Hose Block-To-Expansion Valve Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
